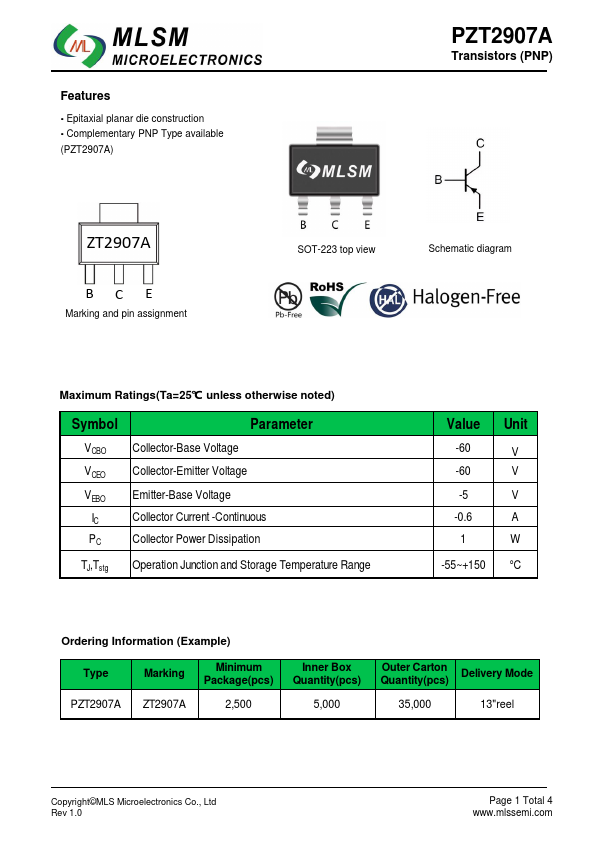

Datasheet Summary
Features
- Epitaxial planar die construction
- plementary PNP Type available (PZT2907A)
Transistors (PNP)
D2
ZT2907A
Marking and pin assignment
SOT-223 top view
Schematic diagram
Maximum Ratings(Ta=25℃ unless otherwise noted)
Symbol
Parameter
VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage
VEBO Emitter-Base Voltage
Collector Current -Continuous
PC Collector Power Dissipation
TJ,Tstg Operation Junction and Storage Temperature Range
Value Unit
-60
-60
-5
-0.6
-55~+150 °C
Ordering Information (Example)
Type
Marking
Minimum Package(pcs)
Inner Box Quantity(pcs)
Outer Carton Quantity(pcs)
Delivery...
