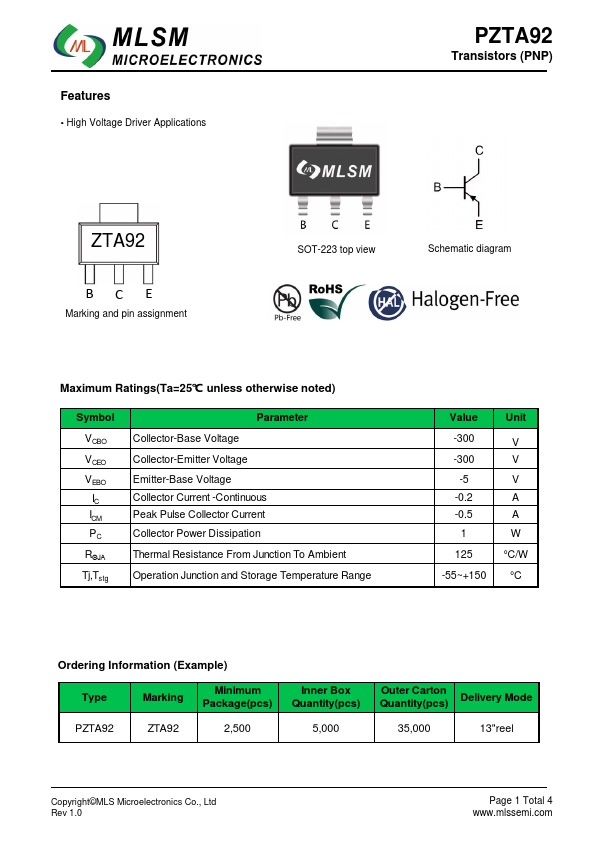

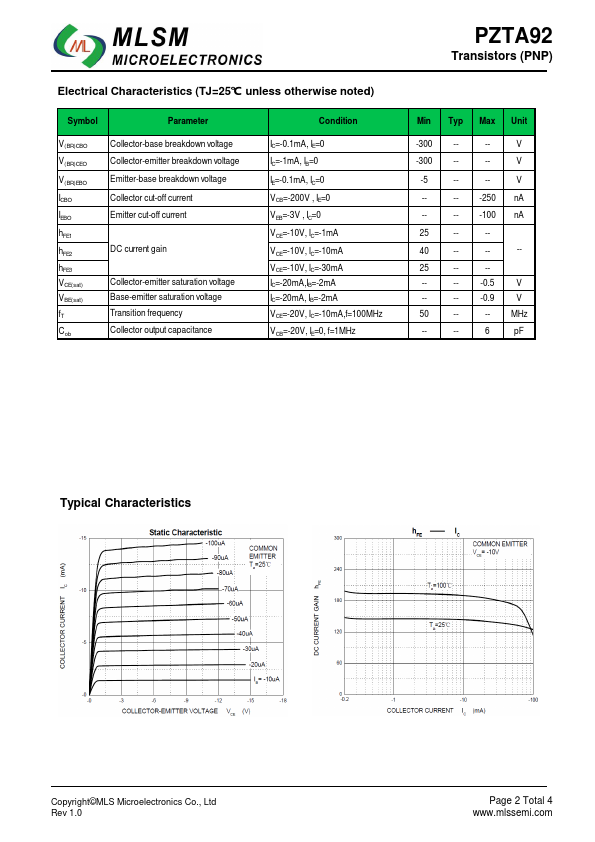

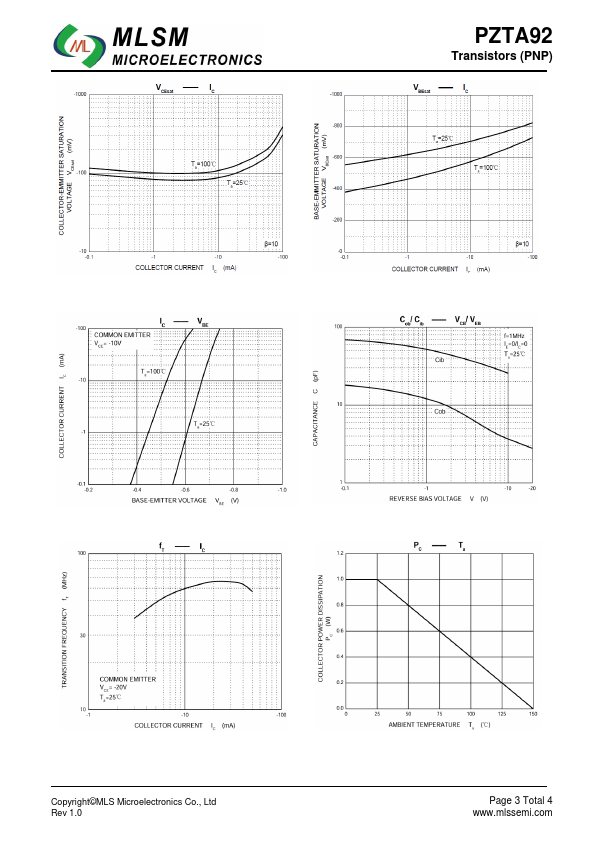

Features - High Voltage Driver Applications Transistors (PNP) D2 ZTA92 Marking and pin assignment SOT-223 top view Schematic diagram Maximum Ratings(Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC ICM PC RΘJA Tj,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Peak Pulse Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range Value -300 -300 -5 -0.2 -0.5 1 125 -55~+150 Unit V V V A A W °C/W °C Ordering Information (Example) Type Marking Minimum Package(pcs) ZTA92 2,500 Inner Box Quantity(pcs) 5,000 Outer Carton Quantity(pcs) Delivery Mode 35,000 13"reel Copyright©MLS Microelectronics Co., Ltd Rev 1.0 Page 1 Total 4 .mlssemi. Electrical Characteristics (TJ=25℃ unless otherwise noted) Symbol Parameter V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO h FE1 h FE2 h FE3 VCE(sat) VBE(sat) f T Cob Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown voltage Collector cut-off current Emitter cut-off current DC current gain Collector-emitter saturation voltage Base-emitter saturation voltage Transition frequency Collector output...
