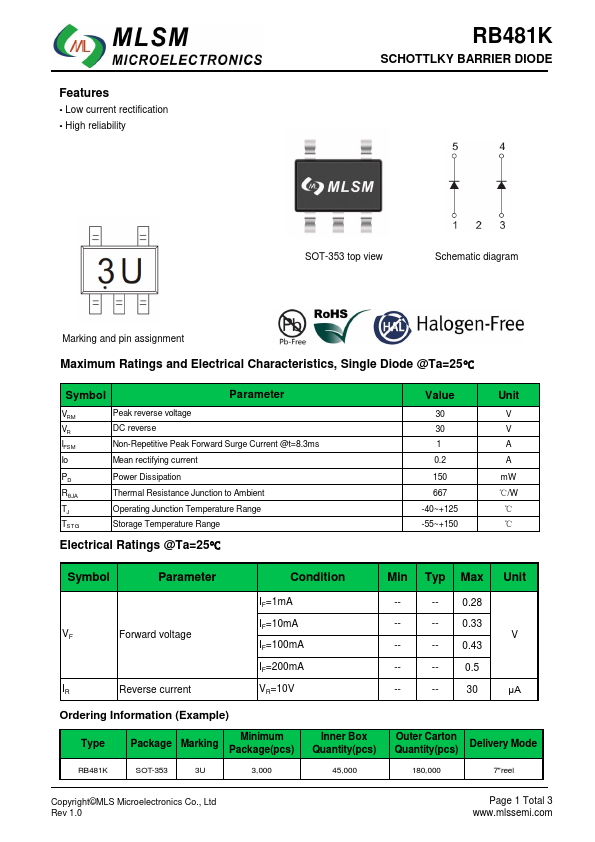

RB481K
RB481K is SCHOTTLKY BARRIER DIODE manufactured by MLS Microelectronics.
Features
- Low current rectification
- High reliability
SCHOTTLKY BARRIER DIODE
SOT-353 top view
Schematic diagram
Marking and pin assignment
Maximum Ratings and Electrical Characteristics, Single Diode @Ta=25℃
Symbol
Parameter
Peak reverse voltage
DC reverse
IFSM
Non-Repetitive Peak Forward Surge Current @t=8.3ms
Io
Mean rectifying current
PD RθJA TJ TST G
Power Dissipation Thermal Resistance Junction to Ambient Operating Junction Temperature Range Storage Temperature Range
Electrical Ratings @Ta=25℃
Value
30 30 1 0.2 150 667 -40~+125 -55~+150
Unit
V V A A mW ℃/W ℃ ℃
Symbol
Parameter
Condition
Min Typ Max Unit
Forward voltage
Reverse...
