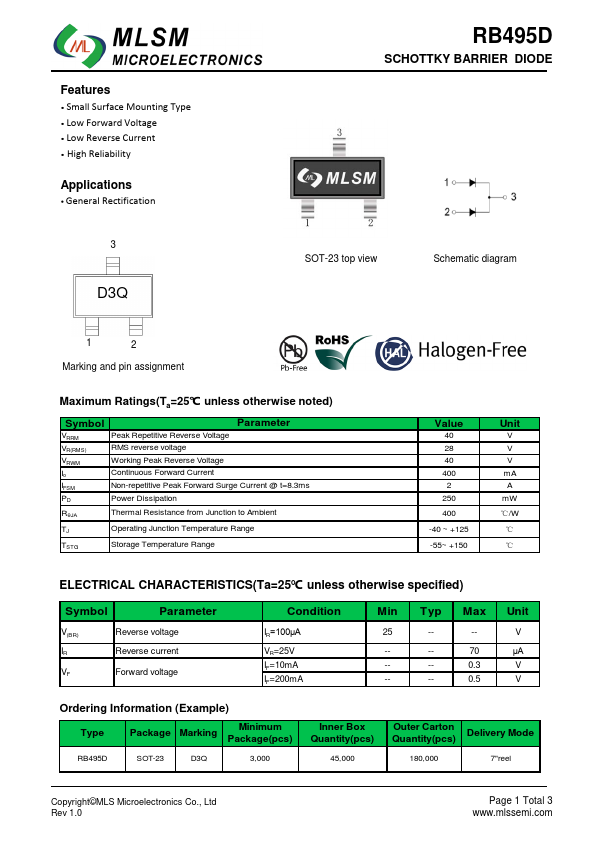

MLSM RB495D
SCHOTTKY BARRIER DIODE
| Part No. | RB495D |
|---|---|
| Datasheet | RB495D Download |
| Manufacturer |  MLSM |
| Description | SCHOTTKY BARRIER DIODE |
| Buy | Stock & Price |
FEATURES
● Small Surface Mounting Type● Low Forward Voltage
● Low Reverse Current
● High Reliability
APPLICATIONS
● General Rectification 3 D3Q RB495D SCHOTTKY BARRIER DIODE SOT-23 top view Schematic diagram 1 2 Marking and pin assignmentMAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol Parameter VRRM VR(RM S) VRWM Io IFSM Peak Repetitive Reverse Voltage RMS reverse voltage Working Peak Reverse Voltage Continuous Forward Current Non-repetitive Peak Forward Surge Current @ t=8.3ms PD Power Dissipation RθJA Thermal Resistance from Junction to Ambient TJ Operating Junction Temperature Range TST G Storage Temperature Range Value 40 28 40 400 2 250 400 -40 ~ +125 -55~ +150 Unit V V V mA A mW ℃/W ℃ ℃ELECTRICAL CHARACTERISTICS
(Ta=25℃ unless otherwise specified) Symbol Parameter V(BR) IR Reverse voltage Reverse current VF Forward voltage Condition IR=100μA VR=25V IF=10mA IF=200mA Min 25 ---- Typ ----- Max -70 0.3 0.5 Unit V μA V V Ordering Information (Example) Type Package Marking Mini...
