SS110
SS110 is Schottky Rectifier Diode manufactured by MLS Microelectronics.
- Part of the SS12 comparator family.
- Part of the SS12 comparator family.
Features
- IF(AV) 1A
- VRRM 20~200V
- High surge current capability
- Polarity: Color band denotes cathode
Applications
- Rectifier
Marking
- SS1X X：From2 To 20
D2 D1 S1

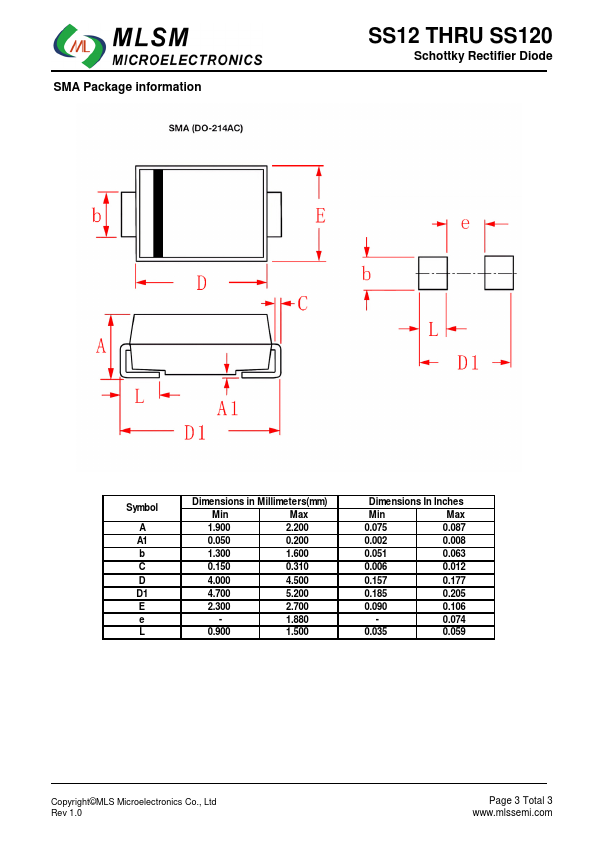

SMA top view
Schematic diagram
Limiting Values(Absolute Maximum Rating)
Symbol
Item
Test Conditions
SS1
Unit
10 15 20
VRRM VRMS IF(AV) IFSM Tj Tstg
Repetitive Peak Reverse Voltage Maximum RMS voltage
Average Forward Current Surge(Non-repetitive)Forward Current Junction Temperature Storage Temperature Range
60Hz Half-sine wave Resistance load
60Hz Half-sine wave， 1 cycle,Ta=25℃
20 30 40 14 21 28
-55~+125
50 60 80 100 150 200 V
35 42 56 70 105 140 V
-55~+125
℃
-55~+150
°C
Electrical Characteristics (T=25℃ Unless otherwise...
