MLSM SS120
Schottky Rectifier Diode
- Max Operating Temp : 125°C
- Min Operating Temp : -55°C
Source:
Octopart
| Part No. | SS120 |
|---|---|
| Datasheet | SS120 Download |
| Manufacturer |  MLSM |
| Description | Schottky Rectifier Diode |
| Buy | Stock & Price |
FEATURES
●IF(AV) 1A●VRRM 20~200V
●High surge current capability
●Polarity: Color band denotes cathode
APPLICATIONS

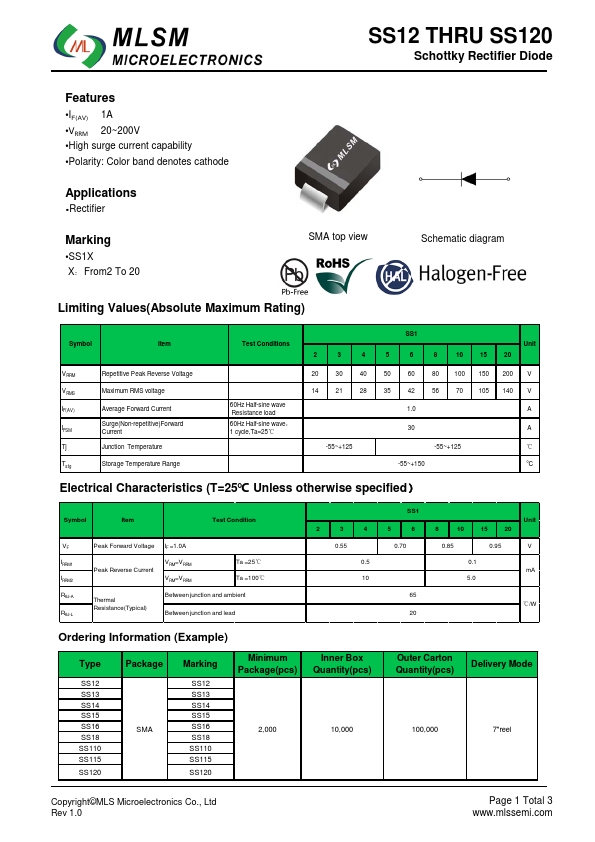

●Rectifier Marking●SS1X X：From2 To 20 D2 D1 S1 SMA top view Schematic diagram Limiting Values(Absolute Maximum Rating) Symbol Item Test Conditions SS1 Unit 2 3 4 5 6 8 10 15 20 VRRM VRMS IF(AV) IFSM Tj Tstg Repetitive Peak Reverse Voltage Maximum RMS voltage Average Forward Current Surge(Non-repetitive)Forward Current Junction Temperature Storage Temperature Range 60Hz Half-sine wave Resistance load 60Hz Half-sine wave， 1 cycle,Ta=25℃ 20 30 40 14 21 28 -55~+125 50 60 80 100 150 200 V 35 42 56 70 105 140 V 1.0 A 30 A -55~+125 ℃ -55~+150 °C
ELECTRICAL CHARACTERISTICS
(T=25℃ Unless otherwise specified） Symbol Item Test Condition VF IRRM1 IRRM2 RθJ-A RθJ-L Peak Forward Voltage IF =1.0A Peak Reverse Current VRM=VRRM VRM=VRRM Ta =25℃ Ta =100℃ Thermal Resistance(Typical) Between junction and ambient Between junction and lead 2 3 4 0.55 0.5 10 SS1 5 6 0.70 65 20 Unit 8 10 15 20...
