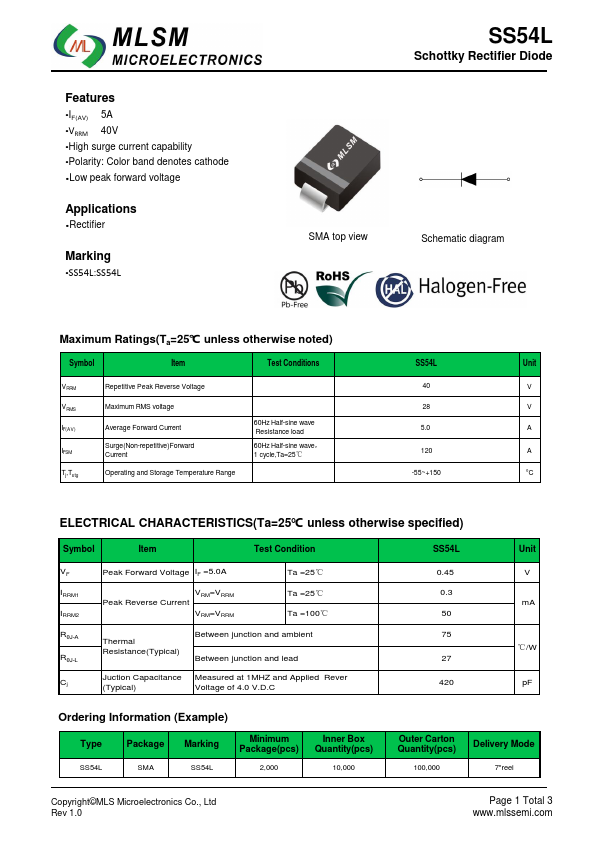

SS54L
Features
- IF(AV) 5A
- VRRM 40V
- High surge current capability
- Polarity: Color band denotes cathode
- Low peak forward voltage
Applications
- Rectifier
Marking
- SS54L:SS54L
Schottky Rectifier Diode
D2 D1 S1
SMA top view
Schematic diagram
Maximum Ratings(Ta=25℃ unless otherwise noted)
Symbol
Item
Test Conditions
Unit
VRRM VRMS IF(AV) IFSM Tj,Tstg
Repetitive Peak Reverse Voltage
Maximum RMS voltage
Average Forward Current Surge(Non-repetitive)Forward Current Operating and Storage Temperature Range
60Hz Half-sine wave Resistance load
60Hz Half-sine wave， 1 cycle,Ta=25℃
-55~+150
°C
ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified)
Symbol
Item
Test Condition
VF IRRM1 IRRM2 RθJ-A RθJ-L Cj
Peak Forward Voltage IF =5.0A
Ta =25℃
VRM=VRRM Peak Reverse Current
VRM=VRRM
Ta =25℃ Ta =100℃
Thermal Resistance(Typical)
Between junction and ambient Between junction and...
