HDR433M
HDR433M is SAW resonator manufactured by MOBICON.

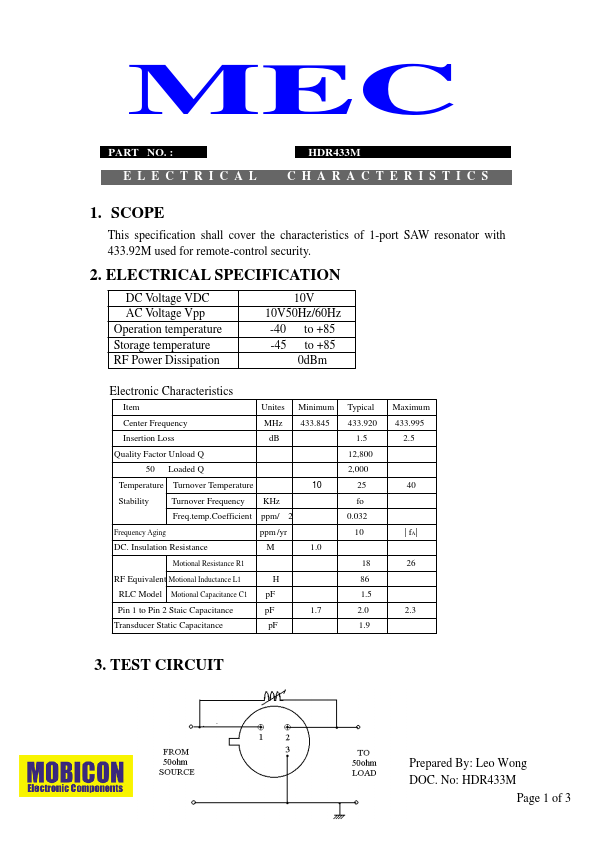

PART NO. : ELECTRICAL
HDR433M CHARACTERISTICS
1. SCOPE
This specification shall cover the characteristics of 1-port SAW resonator with 433.92M used for remote-control security.
2. ELECTRICAL SPECIFICATION
DC Voltage VDC AC Voltage Vpp Operation temperature Storage temperature RF Power Dissipation
10V 10V50Hz/60Hz -40 to +85 -45 to +85
0dBm
Electronic Characteristics
Item
Unites Minimum
Center Frequency
MHz 433.845
Insertion Loss dB
Quality Factor Unload Q
50 Loaded Q
Temperature Turnover Temperature
Stability Turnover Frequency KHz
Freq.temp.Coefficient ppm/ 2
Frequency Aging ppm /yr
DC. Insulation Resistance
Motional Resistance R1
RF Equivalent...
