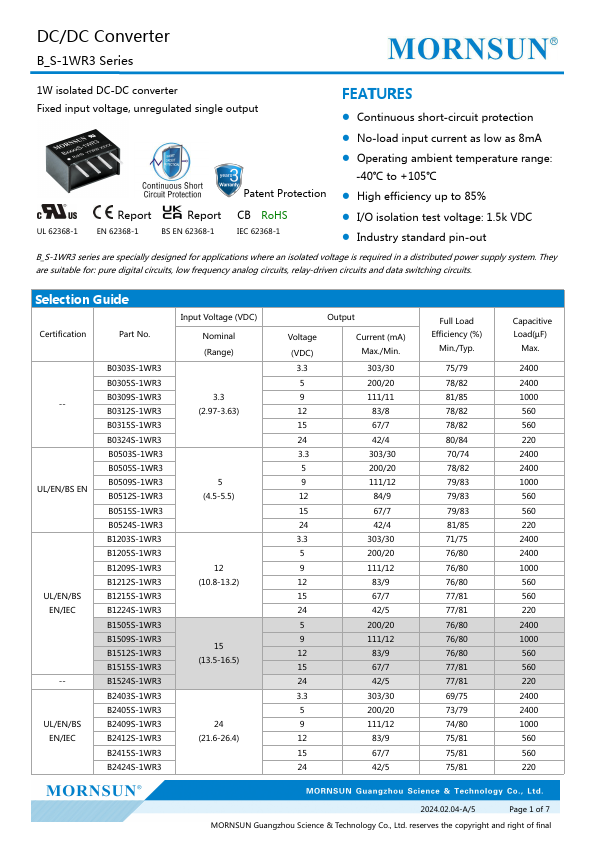

Datasheet Summary
DC/DC Converter
B_S-1WR3 Series
1W isolated DC-DC converter Fixed input voltage, unregulated single output
Features
- Continuous short-circuit protection
- No-load input current as low as 8mA
- Operating ambient temperature range:
-40℃ to +105℃ Patent Protection
- High efficiency up to 85%
UL 62368-1
Report
Report
EN 62368-1
BS EN 62368-1
CB RoHS
IEC 62368-1
- I/O isolation test voltage: 1.5k VDC
- Industry standard pin-out
B_S-1WR3 series are specially designed for applications where an isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching...
