Full PDF Text Transcription for B0503S-1WR3 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
B0503S-1WR3. For precise diagrams, and layout, please refer to the original PDF.

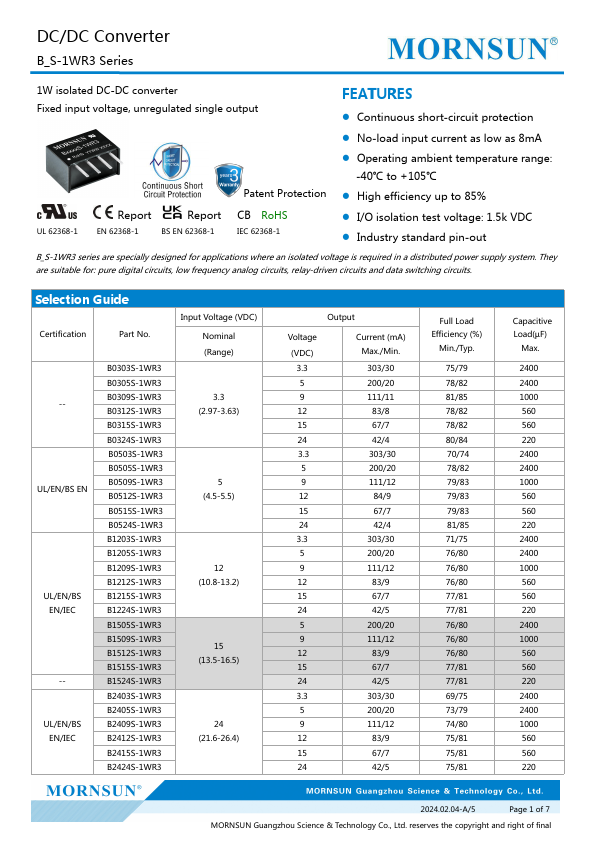

DC/DC Converter B_S-1WR3 Series 1W isolated DC-DC converter Fixed input voltage, unregulated single output FEATURES Continuous short-circuit protection No-load input ...
View more extracted text
output FEATURES Continuous short-circuit protection No-load input current as low as 8mA Operating ambient temperature range: -40℃ to +105℃ Patent Protection High efficiency up to 85% UL 62368-1 Report Report EN 62368-1 BS EN 62368-1 CB RoHS IEC 62368-1 I/O isolation test voltage: 1.5k VDC Industry standard pin-out B_S-1WR3 series are specially designed for applications where an isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Selection Guide Certification Part No.
B0503S-1WR3 Datasheet
