B0505S-1WR3 Datasheet DC/DC Converter

Manufacturer: MORNSUN

Download the B0505S-1WR3 datasheet PDF. This datasheet also includes the B0503S-1WR3 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

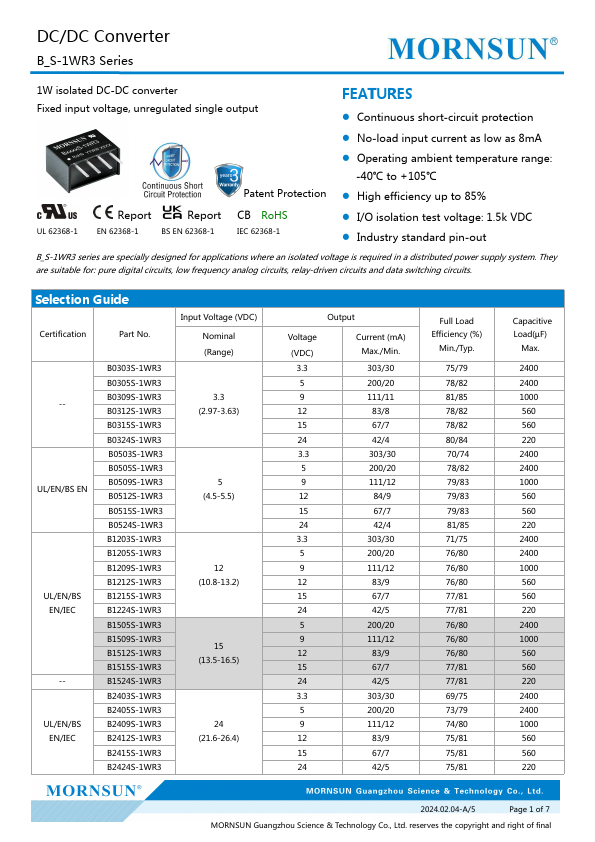

B0505S-1WR3 dc/dc converter by MORNSUN - Datasheet Preview — Note: The manufacturer provides a single datasheet file (B0503S-1WR3-MORNSUN.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	B0505S-1WR3
Manufacturer	MORNSUN
File Size	2.09 MB
Description	DC/DC Converter
Download	B0505S-1WR3 Download (PDF)

Overview

DC/DC Converter B_S-1WR3 Series 1W isolated DC-DC converter Fixed input voltage, unregulated single.

Key Features

Continuous short-circuit protection.
No-load input current as low as 8mA.
Operating ambient temperature range: -40℃ to +105℃ Patent Protection.
High efficiency up to 85% UL 62368-1 Report Report EN 62368-1 BS EN 62368-1 CB RoHS IEC 62368-1.
I/O isolation test voltage: 1.5k VDC.
Industry standard pin-out B_S-1WR3 series are specially designed for.
