B0509S-1WR3 Datasheet DC/DC Converter

Manufacturer: MORNSUN

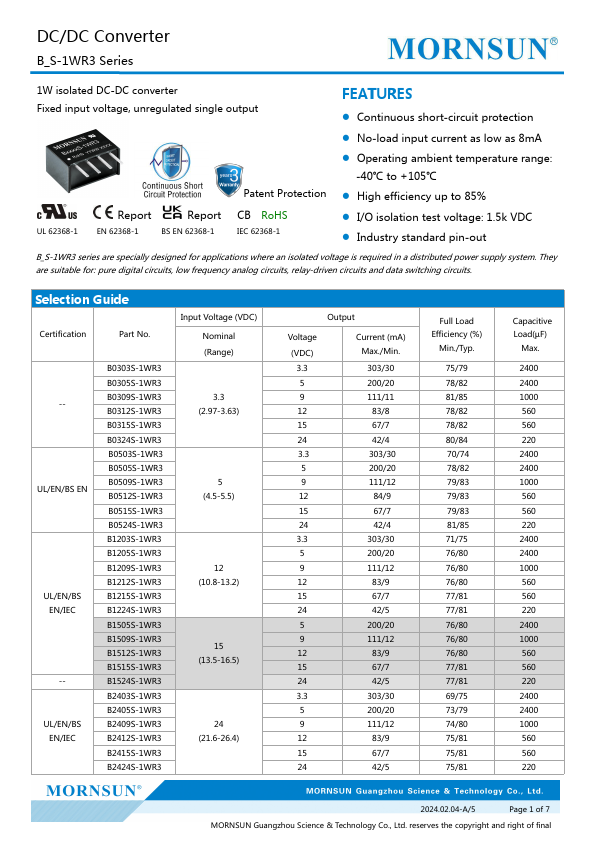

Download the B0509S-1WR3 datasheet PDF. This datasheet also includes the B0503S-1WR3 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (B0503S-1WR3-MORNSUN.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number B0509S-1WR3
Manufacturer MORNSUN
File Size 2.09 MB
Description DC/DC Converter
Datasheet download datasheet B0509S-1WR3 Datasheet

Overview

DC/DC Converter B_S-1WR3 Series 1W isolated DC-DC converter Fixed input voltage, unregulated single.

Key Features

  • Continuous short-circuit protection.
  • No-load input current as low as 8mA.
  • Operating ambient temperature range: -40℃ to +105℃ Patent Protection.
  • High efficiency up to 85% UL 62368-1 Report Report EN 62368-1 BS EN 62368-1 CB RoHS IEC 62368-1.
  • I/O isolation test voltage: 1.5k VDC.
  • Industry standard pin-out B_S-1WR3 series are specially designed for.
