MP1604C - 5.5V 4A Synchronous Step-Down Converter

Description

The MP1604C is a monolithic, step-down switchmode converter with built-in internal power MOSFETs.

It achieves 4A of continuous output current (IOUT) from a 2.4V to 5.5V input voltage (VIN) range, with excellent load and line regulation.

The output voltage (VOUT) can be regulated to as low as 0.4V.

Features

  • Wide 2.4V to 5.5V Operating Input Voltage (VIN) Range.
  • Up to 4A Output Current (IOUT).
  • 16mΩ and 10mΩ Internal Power MOSFET Switches.
  • Forced Continuous Conduction Mode (FCCM).
  • 1.25MHz Fixed Switching Frequency (fSW).
  • Enable (EN) Function.
  • High Feedback Accuracy: o ±0.75% at Junction Temperature (TJ) = 25°C o ±1% at TJ = -40°C to +125°C.
  • Output Discharge.
  • Short-Circuit Protection (SCP) with Hiccup Mode.
  • Powe.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MP1604 Tunnel Diodes M-Pulse
MP160 Low Cost Quartz Crystal CTS
MP160-E Low Cost Quartz Crystal CTS
MP1600 Tunnel Diodes M-Pulse
MP1601 Tunnel Diodes M-Pulse

Other Datasheets by Monolithic Power Systems

Part Number Description
MP1601 Step-Down Converter
MP1601A 1A Synchronous Step-down Converter
MP1601AGTF 1A Synchronous Step-down Converter
MP1601GTF Step-Down Converter
MP1605 Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

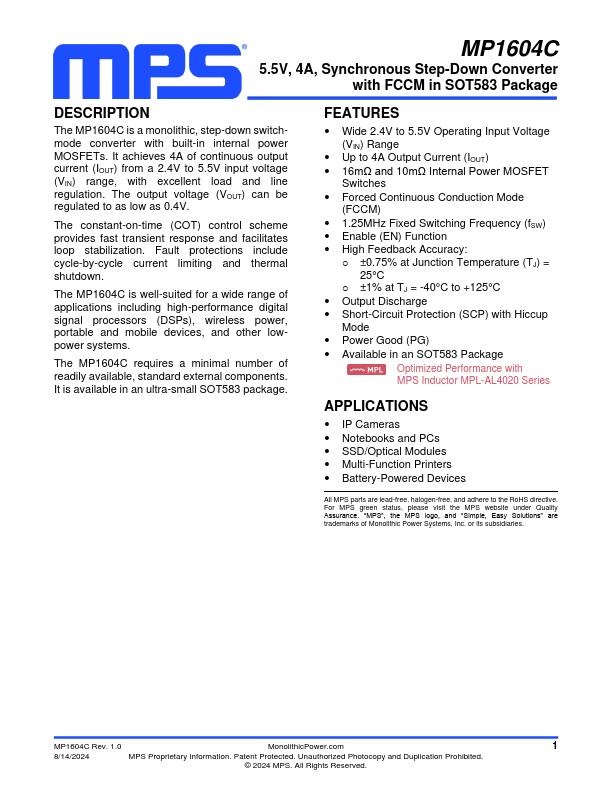

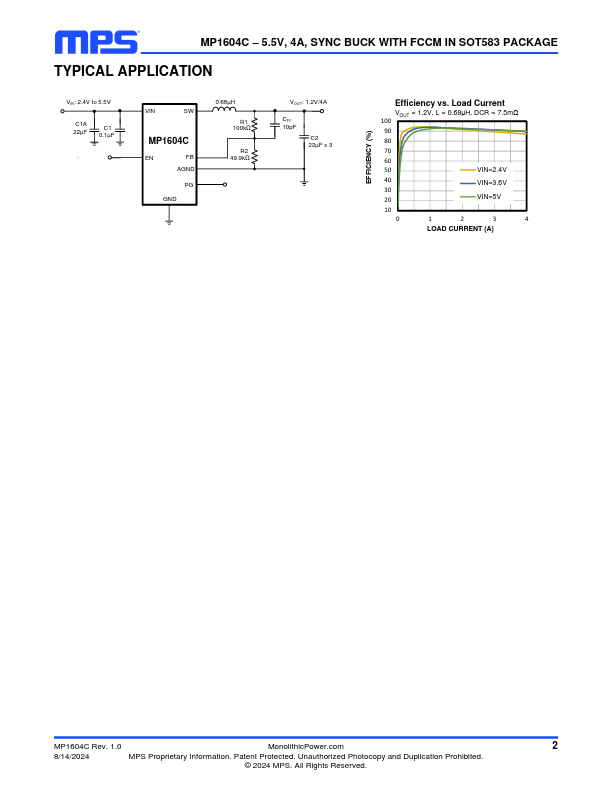

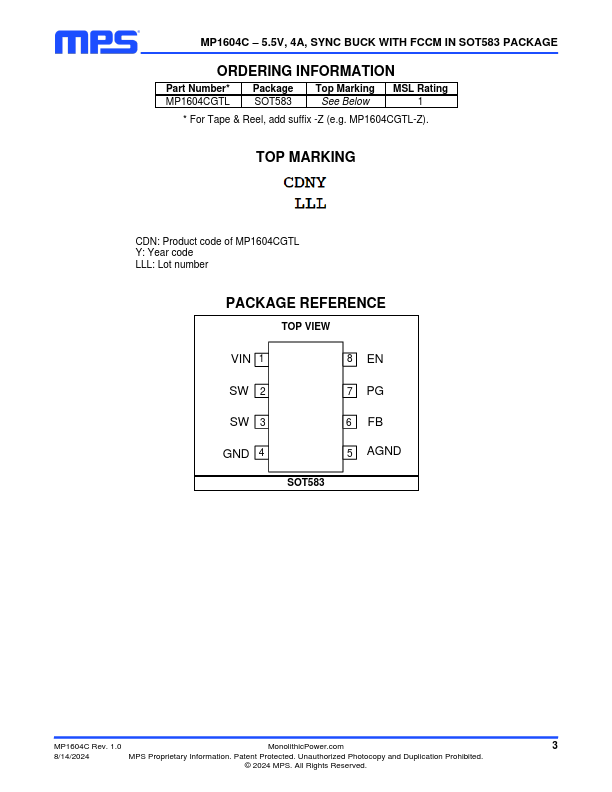

MP1604C 5.5V, 4A, Synchronous Step-Down Converter with FCCM in SOT583 Package DESCRIPTION The MP1604C is a monolithic, step-down switchmode converter with built-in internal power MOSFETs. It achieves 4A of continuous output current (IOUT) from a 2.4V to 5.5V input voltage (VIN) range, with excellent load and line regulation. The output voltage (VOUT) can be regulated to as low as 0.4V. The constant-on-time (COT) control scheme provides fast transient response and facilitates loop stabilization. Fault protections include cycle-by-cycle current limiting and thermal shutdown. The MP1604C is well-suited for a wide range of applications including high-performance digital signal processors (DSPs), wireless power, portable and mobile devices, and other lowpower systems.
