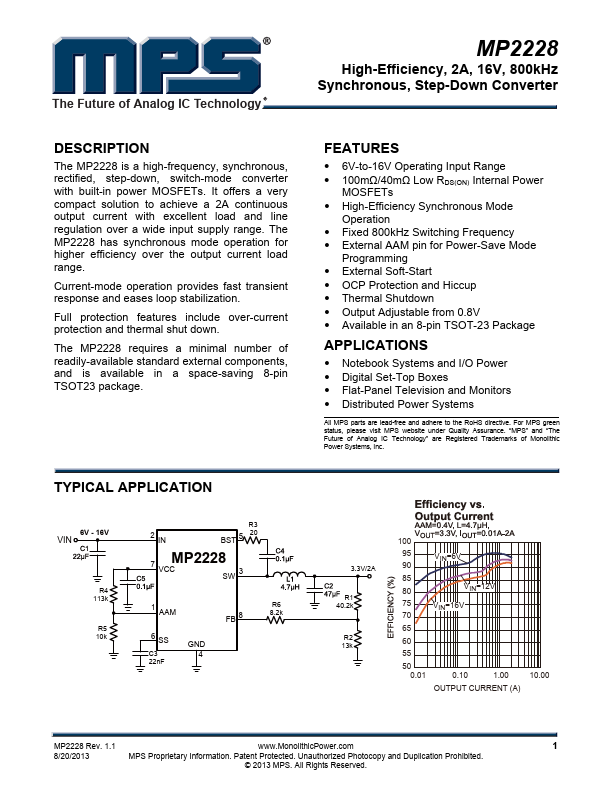

MP2228
DESCRIPTION
The MP2228 is a high-frequency, synchronous, rectified, step-down, switch-mode converter with built-in power MOSFETs. It offers a very pact solution to achieve a 2A continuous output current with excellent load and line regulation over a wide input supply range. The MP2228 has synchronous mode operation for higher efficiency over the output current load range.
Current-mode operation provides fast transient response and eases loop stabilization.
Full protection features include over-current protection and thermal shut down.
The MP2228 requires a minimal number of readily-available standard external ponents, and is available in a space-saving 8-pin TSOT23 package.
TYPICAL APPLICATION
6V
- 16V
R4 113k
R5 10k
2 IN
R3 BST 5 20
VCC SW
1 AAM
R6
FB 8
8.2k
6 SS
C3 22n F
GND 4
FEATURES
- 6V-to-16V Operating Input Range
- 100mΩ/40mΩ Low RDS(ON) Internal Power
MOSFETs
- High-Efficiency Synchronous Mode
Operation
- Fixed 800k Hz Switching Frequency
- External...
