MP2642 - 1A Bidirectional Active Balancer

Description

The MP2642 is a highly integrated, bidirectional active balancer that provides up to 1A of charge redistribution among Li-ion, Li-polymer, or lithium iron phosphate batteries in a two-series battery pack.

Features

  • Wide Operating Voltage Range Compatible with LiFePO4 Batteries: o 2.4V Minimum Cell Voltage o 4.35V Maximum Cell Voltage.
  • Low Quiescent Current (IQ): o CU Pin IQ: Below 15μA o CL Pin IQ: Below 0.1μA.
  • Buck-Balance Mode: o Net Transfer Current to Lower Cell (CL) o Configurable between 0.5A and 1A.
  • Boost-Balance Mode: o Net Transfer Current to Upper Cell (CU) o Configurable between 0.5A and 1A.
  • Protections: o Thermal Shutdown o Internal CL Port Battery.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MP2601 Monolithic Schottky Bridge Quad Diodes M-Pulse Microwave
MP2602 Monolithic Schottky Bridge Quad Diodes M-Pulse Microwave
MP2603 Monolithic Schottky Bridge Quad Diodes M-Pulse Microwave
MP2604 Monolithic Schottky Bridge Quad Diodes M-Pulse Microwave
MP2605 Monolithic Schottky Bridge Quad Diodes M-Pulse Microwave

Other Datasheets by Monolithic Power Systems

Part Number Description
MP2602 1A Linear Li-Ion Battery Charger
MP26028 1A Linear Li-Ion Battery Charger
MP26028EQ 1A Linear Li-Ion Battery Charger
MP26029 Li-Ion Battery Charger
MP26029GN Li-Ion Battery Charger

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

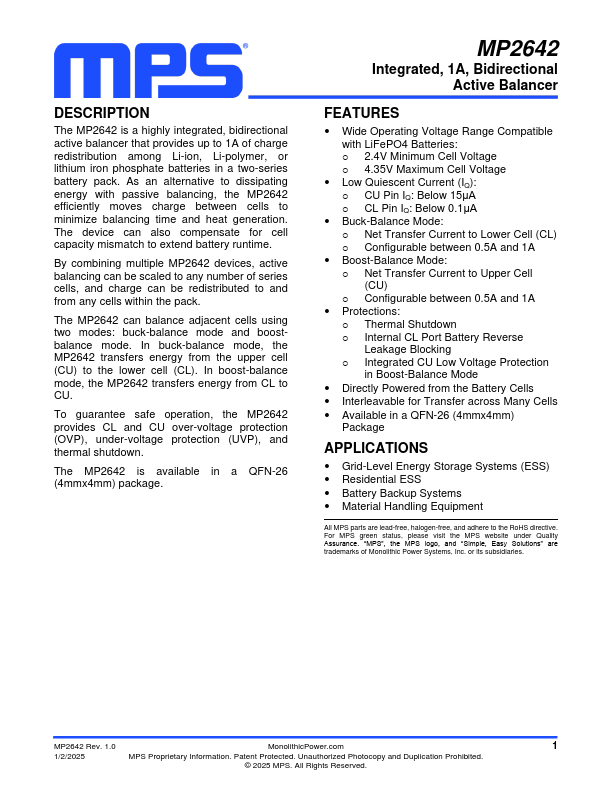

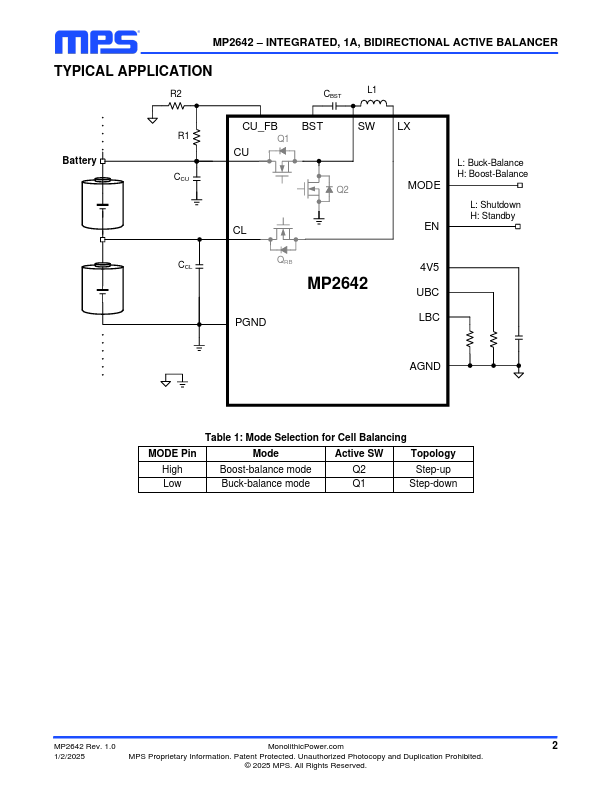

DESCRIPTION The MP2642 is a highly integrated, bidirectional active balancer that provides up to 1A of charge redistribution among Li-ion, Li-polymer, or lithium iron phosphate batteries in a two-series battery pack. As an alternative to dissipating energy with passive balancing, the MP2642 efficiently moves charge between cells to minimize balancing time and heat generation. The device can also compensate for cell capacity mismatch to extend battery runtime. By combining multiple MP2642 devices, active balancing can be scaled to any number of series cells, and charge can be redistributed to and from any cells within the pack. The MP2642 can balance adjacent cells using two modes: buck-balance mode and boostbalance mode.
