MP6603 - 55V Dual Full-Bridge Motor Driver

Description

The MP6603 is a dual full-bridge motor driver with integrated low-on resistance (RDS(ON)) MOSFETs.

High integration and a small QFN package make the MP6603 a cost-effective solution for brushed DC motor drivers and stepper motor drivers.

Features

  • include over-current protection (OCP), short-circuit protection (SCP), under-voltage protection (UVP), and thermal shutdown. The MP6603 is available in a QFN-25 (4mmx5mm) package. MP6603 55V, Dual Full-Bridge Motor Driver with Internal Current Sense.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MP6 AC-DC / Configurable Emerson
MP60-E PENTIUM PRO PROCESSOR VOLTAGE REGULATOR MODULE Semtech Corporation
MP60-F KLAMATH PROCESSOR VOLTAGE REGULATOR MODULE Semtech Corporation
MP6005 SINGLE-PHASE SILICON BRIDGE RECTIFIER Dc Components
MP601 SINGLE-PHASE SILICON BRIDGE RECTIFIER Dc Components

Other Datasheets by Monolithic Power Systems

Part Number Description
MP6600 Stepper Motor Driver
MP6600GR Stepper Motor Driver
MP6600L 1.5A Stepper Motor Driver
MP6600LGR 1.5A Stepper Motor Driver
MP6602 Stepper Motor Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

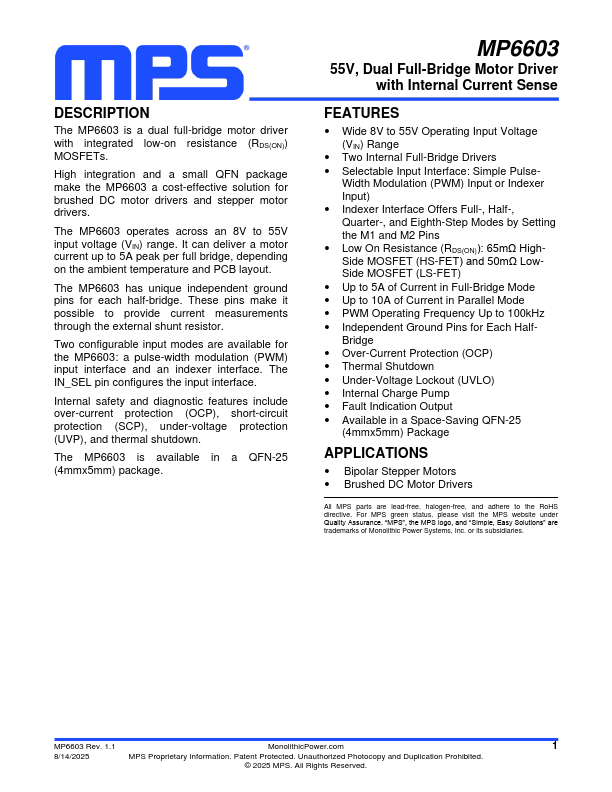

DESCRIPTION The MP6603 is a dual full-bridge motor driver with integrated low-on resistance (RDS(ON)) MOSFETs. High integration and a small QFN package make the MP6603 a cost-effective solution for brushed DC motor drivers and stepper motor drivers. The MP6603 operates across an 8V to 55V input voltage (VIN) range. It can deliver a motor current up to 5A peak per full bridge, depending on the ambient temperature and PCB layout. The MP6603 has unique independent ground pins for each half-bridge. These pins make it possible to provide current measurements through the external shunt resistor. Two configurable input modes are available for the MP6603: a pulse-width modulation (PWM) input interface and an indexer interface. The IN_SEL pin configures the input interface.
