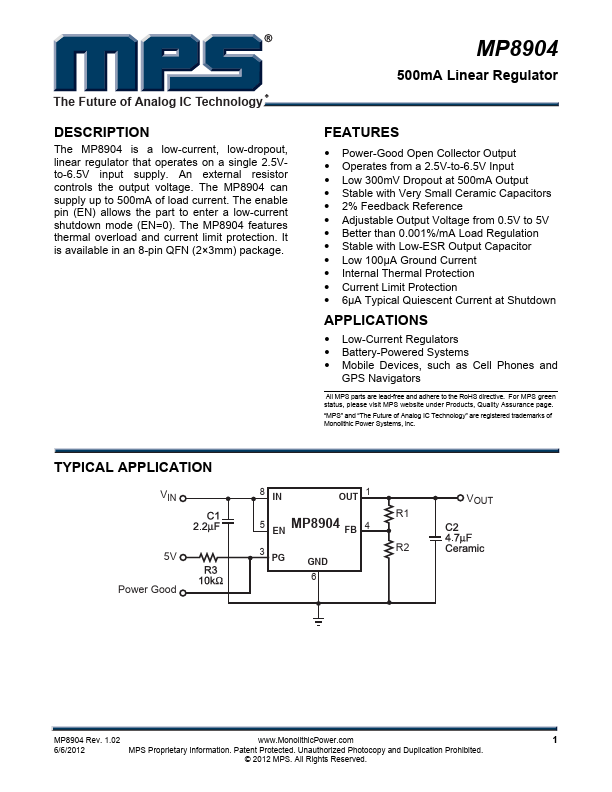

MP8904
MP8904 is 500mA Linear Regulator manufactured by Monolithic Power Systems.
DESCRIPTION
The MP8904 is a low-current, low-dropout, linear regulator that operates on a single 2.5Vto-6.5V input supply. An external resistor controls the output voltage. The MP8904 can supply up to 500m A of load current. The enable pin (EN) allows the part to enter a low-current shutdown mode (EN=0). The MP8904 features thermal overload and current limit protection. It is available in an 8-pin QFN (2×3mm) package.
500m A Linear Regulator
FEATURES
- Power-Good Open Collector Output
- Operates from a 2.5V-to-6.5V Input
- Low 300m V Dropout at 500m A Output
- Stable with Very Small Ceramic Capacitors
- 2% Feedback Reference
- Adjustable Output Voltage from 0.5V to 5V
- Better than 0.001%/m A Load Regulation
- Stable with Low-ESR Output Capacitor
- Low 100μA Ground Current
- Internal Thermal Protection
- Current Limit Protection
- 6µA Typical Quiescent Current at Shutdown
APPLICATIONS
- Low-Current Regulators
- Battery-Powered Systems
- Mobile Devices, such as Cell Phones and
GPS Navigators
All MPS parts are lead-free and adhere to the Ro HS directive. For MPS green status, please visit MPS website under Products, Quality Assurance page. “MPS” and “The Future of Analog IC Technology” are registered trademarks of Monolithic Power Systems, Inc.
TYPICAL APPLICATION
5V Power Good
8 IN
OUT 1
5 EN MP8904 FB 4
R1
3 PG
R2
VOUT
MP8904 Rev. 1.02
.Monolithic Power.
6/6/2012
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
