Datasheet Details
| Part number | MI0700A2T-20RP |
|---|---|
| Manufacturer | MULTI-INNO TECHNOLOGY |
| File Size | 1.45 MB |
| Description | LCD |
| Datasheet |
 MI0700A2T-20RP Datasheet
|
|
|
| Part number | MI0700A2T-20RP |
|---|---|
| Manufacturer | MULTI-INNO TECHNOLOGY |
| File Size | 1.45 MB |
| Description | LCD |
| Datasheet |
MI0700A2T-20RP Datasheet
|
|
|
|

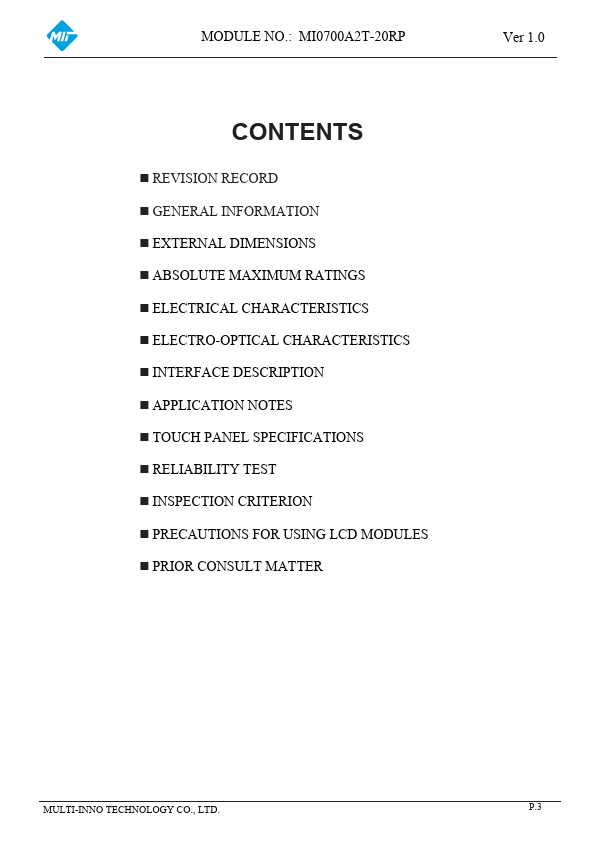

APPLICATION NOTES TOUCH PANEL SPECIFICATIONS RELIABILITY TEST INSPECTION CRITERION PRECAUTIONS FOR USING LCD MODULES PRIOR CONSULT MATTER MULTI-INNO TECHNOLOGY CO., LTD.
P.3 MODULE NO.: MI0700A2T-20RP Ver 1.0 GENERAL INFORMATION Item Specification LCD Type TFT / Transmissive / Normally white Size Viewing Direction Gray Scale Inversion Direction 7.0 12:00 (without image inversion and least brightness change) 6:00 (contrast peak located at) LCM (W × H × D) 65.00 × 104.54 × 6.70 (Without PCBA) Active Area (W × H) 152.40 × 91.44 Pixel Pitch 0.1905 × 0.1905 Number of Dots 800 (RGB) × 480 Driver IC EK79713B + EK73202A Backlight Type 24LEDs Interface Type 18-bit RGB Color Depth 262K Pixel Configuration R.G.B Vertical Stripe Top Polarizer Surface Treatment Anti-glare Input Voltage 3.3 With / Without TSP With RTP TP Surface Treatment Anti-glare Weight TBD Note 1: ROHS compliant;
Note 2: LCM weight tolerance: ±5%.
MULTI-INNO TECHNOLOGY CO., LTD.

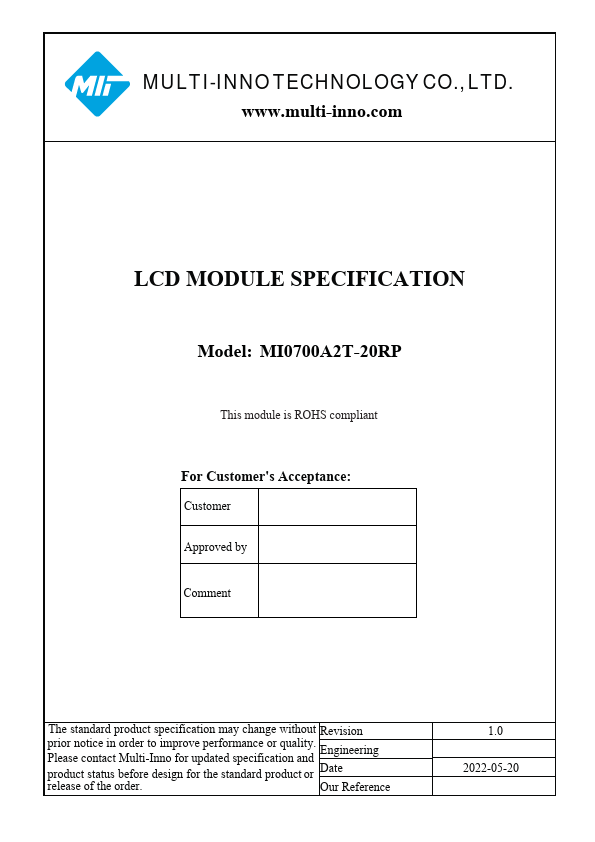

www.multi-inno.com LCD MODULE SPECIFICATION Model: MI0700A2T-20RP This module is ROHS compliant For Customer's Acceptance: Customer Approved by Comment The standard product specification may change without Revision prior notice in Please contact order to improve performance or quality.
Multi-Inno for updated specification and Engineering product status before design for the standard product or Date release of the order.
