Datasheet Summary
MX25L6406E

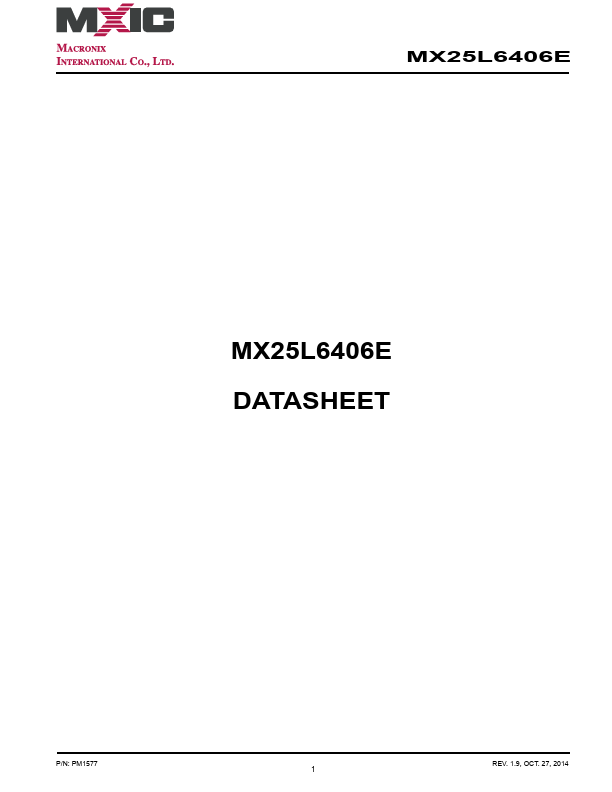

MX25L6406E DATASHEET
P/N: PM1577
REV. 1.9, OCT. 27, 2014 1
MX25L6406E

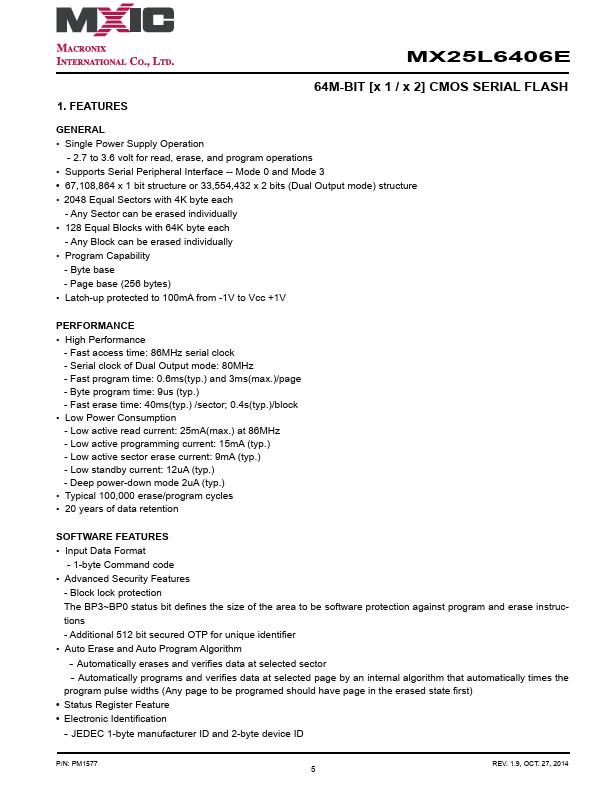

1. Features
64M-BIT [x 1 / x 2] CMOS SERIAL FLASH
GENERAL
- Single Power Supply Operation
- 2.7 to 3.6 volt for read, erase, and program operations
- Supports Serial Peripheral Interface -- Mode 0 and Mode 3
- 67,108,864 x 1 bit structure or 33,554,432 x 2 bits (Dual Output mode) structure
- 2048 Equal Sectors with 4K byte each
- Any Sector can be erased individually
- 128 Equal Blocks with 64K byte each
- Any Block can be erased individually
- Program Capability
- Byte base
- Page base (256 bytes)
- Latch-up protected to 100mA from -1V to Vcc +1V
PERFORMANCE
- High Performance
- Fast access...
