MX25L4005A - 4M-BIT [x 1] CMOS SERIAL FLASH

General Description

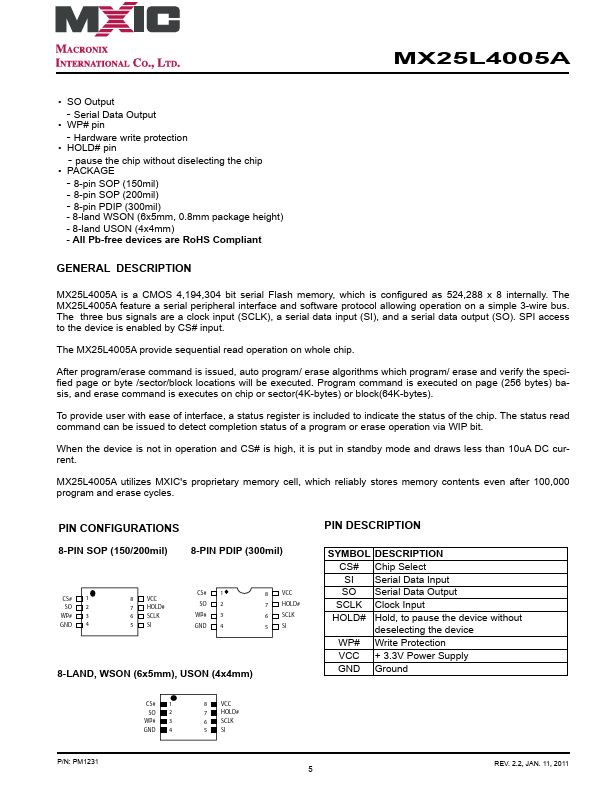

The MX25L4005A is a CMOS 4,194,304 bit serial Flash memory, which is configured as 524,288 x 8 internally.

The MX25L4005A feature a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus.

📥 Download Datasheet

Datasheet Details

Part number MX25L4005A
Manufacturer Macronix
File Size 1.56 MB
Description 4M-BIT [x 1] CMOS SERIAL FLASH
Datasheet download datasheet MX25L4005A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MX25L4005 4M-Bit CMOS Serial Flash MXIC
MX25L4006E 4M-BIT [x 1/x 2] CMOS SERIAL FLASH MXIC
MX25L1006E CMOS 1Mk-bit serial Flash memory MACRONIX
MX25L1026E 1M-BIT [x 1/x 2] CMOS SERIAL FLASH Macronix
MX25L12833F 128M-BIT FLASH MEMORY MACRONIX

Other Datasheets by Macronix

Part Number Description
MX25L4026E 4M-BIT [x 1/x 2] CMOS SERIAL FLASH
MX25L1005 1M-BIT [x 1] CMOS SERIAL FLASH
MX25L1021E 512K-BIT [x 1] CMOS SERIAL FLASH Memory
MX25L1025C 1M-BIT [x 1] CMOS SERIAL FLASH
MX25L12805D 128M-BIT [x 1] CMOS SERIAL FLASH

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

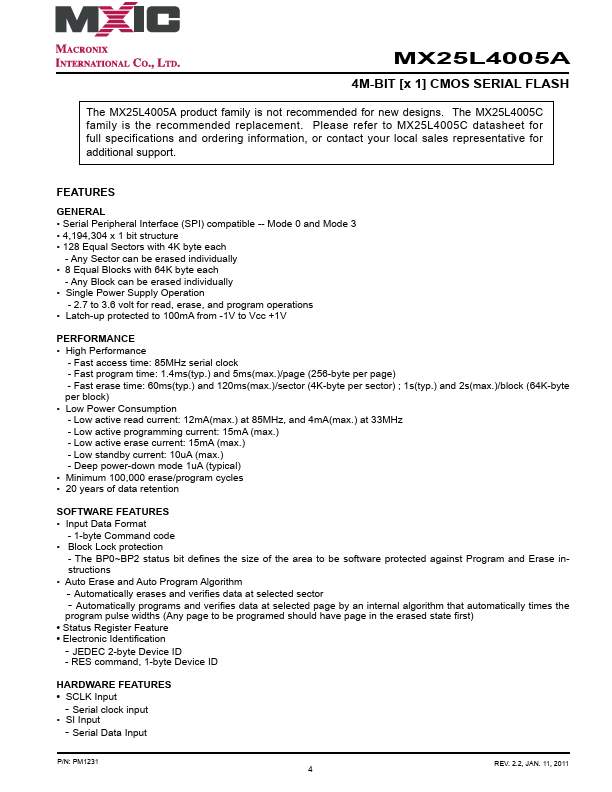

www.DataSheet4U.com MX25L4005A 4M-BIT [x 1] CMOS SERIAL FLASH FEATURES GENERAL • Serial Peripheral Interface (SPI) compatible -- Mode 0 and Mode 3 • 4,194,304 x 1 bit structure • 128 Equal Sectors with 4K byte each - Any Sector can be erased individually • 8 Equal Blocks with 64K byte each - Any Block can be erased individually • Single Power Supply Operation - 2.7 to 3.6 volt for read, erase, and program operations • Latch-up protected to 100mA from -1V to Vcc +1V • Low Vcc write inhibit is from 1.5V to 2.5V PERFORMANCE • High Performance - Fast access time: 85MHz serial clock (15pF + 1TTL Load) and 66MHz serial clock (30pF + 1TTL Load) - Fast program time: 1.4ms(typ.) and 5ms(max.)/page (256-byte per page) - Fast erase time: 60ms(typ.) and 120ms(max.
