MX25U8035
MX25U8035 is 8M-BIT [x 1/x 2/x 4] 1.8V CMOS SERIAL FLASH manufactured by Macronix.
- Part of the MX25U4035 comparator family.
- Part of the MX25U4035 comparator family.
MX25U4035 MX25U8035

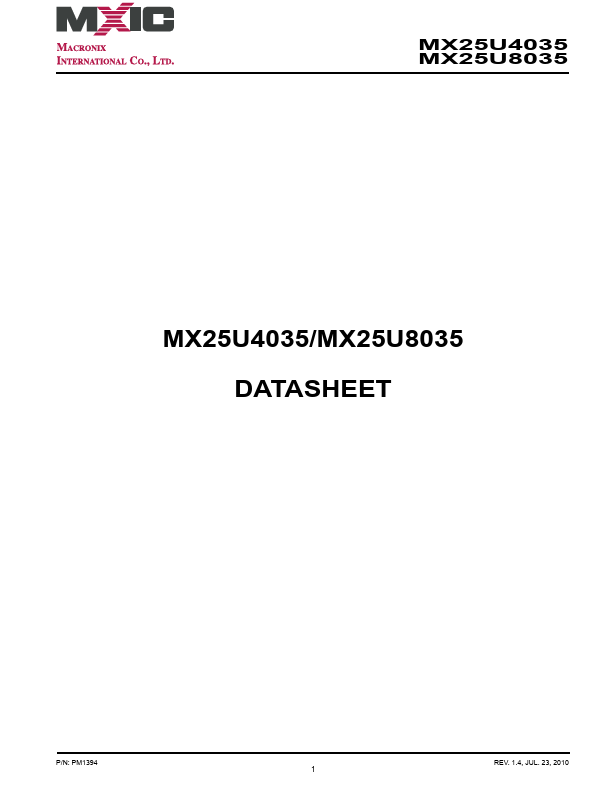

MX25U4035/MX25U8035 DATASHEET
P/N: PM1394
REV. 1.4, JUL. 23, 2010 1
MX25U4035 MX25U8035

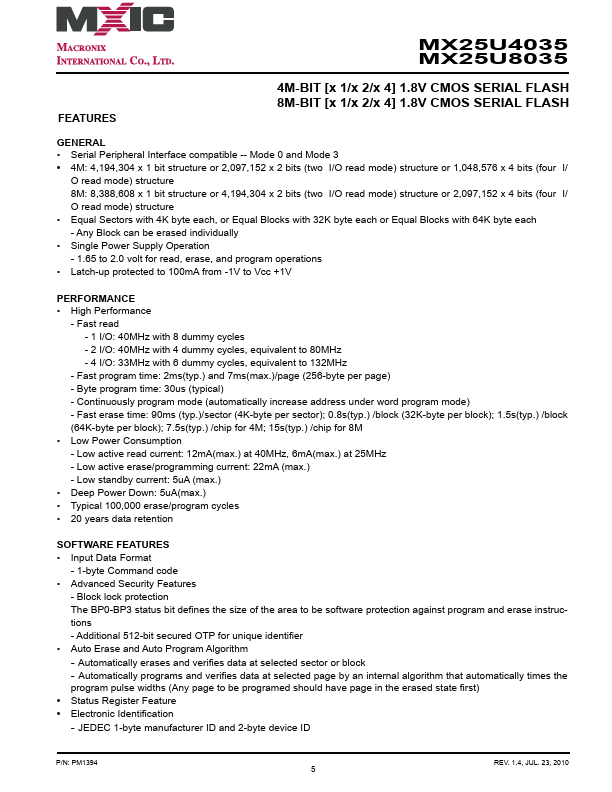

Features
4M-BIT [x 1/x 2/x 4] 1.8V CMOS SERIAL FLASH 8M-BIT [x 1/x 2/x 4] 1.8V CMOS SERIAL FLASH
GENERAL
- Serial Peripheral Interface patible -- Mode 0 and Mode 3
- 4M: 4,194,304 x 1 bit structure or 2,097,152 x 2 bits (two I/O read mode) structure or 1,048,576 x 4 bits (four I/
O read mode) structure 8M: 8,388,608 x 1 bit structure or 4,194,304 x 2 bits (two I/O read mode) structure or 2,097,152 x 4 bits (four I/ O read mode) structure
- Equal Sectors with 4K byte each, or Equal Blocks with 32K byte each or Equal Blocks with 64K byte each
- Any Block can be erased...
