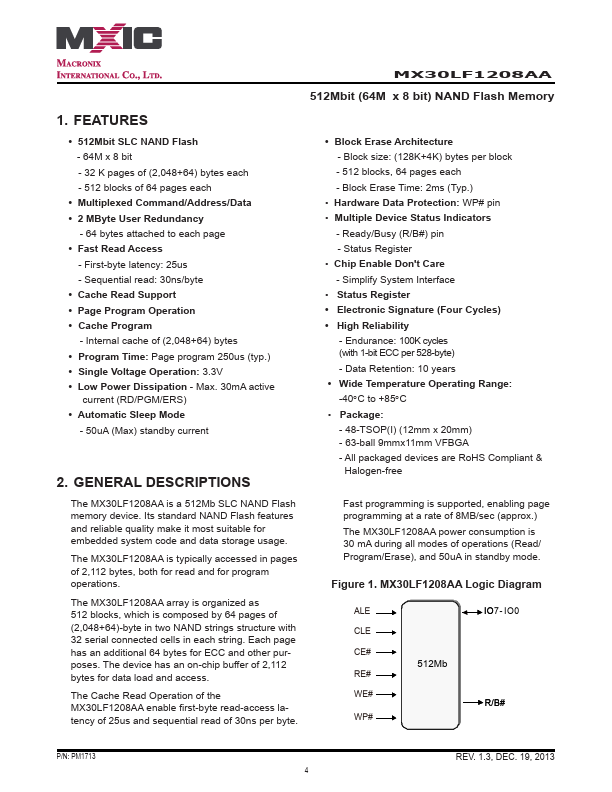

512M-bit NAND Flash Memory P/N: PM1713 REV. 1.3, DEC. 19, 2013 1 512Mbit (64M x 8 bit) NAND Flash Memory 1. Features - 512Mbit SLC NAND Flash - 64M x 8 bit - 32 K pages of (2,048+64) bytes each - 512 blocks of 64 pages each - Multiplexed mand/Address/Data - 2 MByte User Redundancy - 64 bytes attached to each page - Fast Read Access - First-byte latency: 25us - Sequential read: 30ns/byte - Cache Read Support - Page Program Operation - Cache Program - Internal cache of (2,048+64) bytes - Program Time: Page program 250us (typ.) - Single Voltage Operation: 3.3V - Low Power Dissipation - Max. 30m A active current (RD/PGM/ERS) - Automatic Sleep Mode - 50u A (Max) standby current 2. GENERAL DESCRIPTIONS The MX30LF1208AA is a 512Mb SLC NAND Flash memory device. Its standard NAND Flash Features and reliable quality make it most suitable for embedded system code and data storage usage. The MX30LF1208AA is typically accessed in pages of 2,112 bytes, both for read and for program operations. The MX30LF1208AA array is organized as 512 blocks, which is posed by 64 pages of (2,048+64)-byte in two NAND strings structure with 32 serial connected cells in each string. Each page has an additional 64 bytes for ECC and other purposes. The device has an on-chip buffer of 2,112 bytes for data load and access. The Cache Read Operation of the MX30LF1208AA enable first-byte read-access latency of 25us and sequential read of 30ns per...
