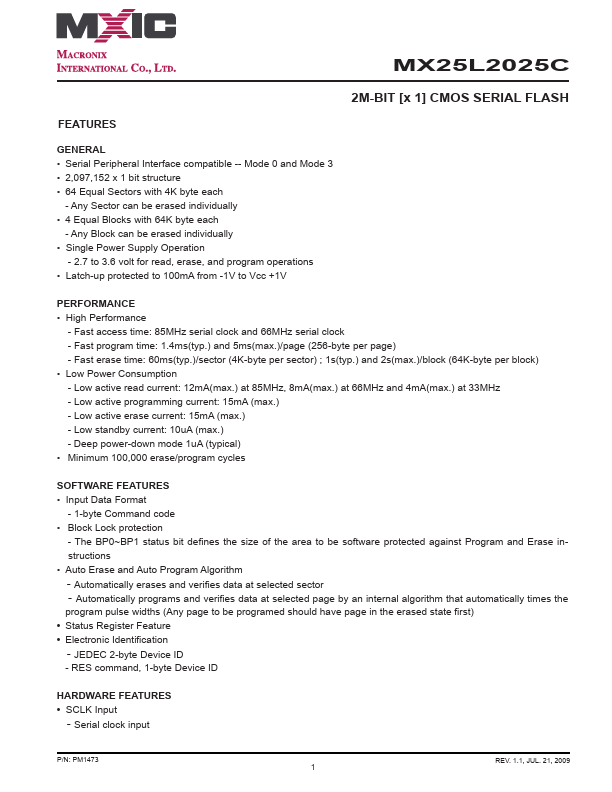

MX25L2025C
FEATURES
GENERAL
- Serial Peripheral Interface patible -- Mode 0 and Mode 3
- 2,097,152 x 1 bit structure
- 64 Equal Sectors with 4K byte each
- Any Sector can be erased individually
- 4 Equal Blocks with 64K byte each
- Any Block can be erased individually
- Single Power Supply Operation
- 2.7 to 3.6 volt for read, erase, and program operations
- Latch-up protected to 100m A from -1V to Vcc +1V
PERFORMANCE
- High Performance
- Fast access time: 85MHz serial clock and 66MHz serial clock
- Fast program time: 1.4ms(typ.) and 5ms(max.)/page (256-byte per page)
- Fast erase time: 60ms(typ.)/sector (4K-byte per sector) ; 1s(typ.) and 2s(max.)/block (64K-byte per block)
- Low Power Consumption
- Low active read current: 12m A(max.) at 85MHz, 8m A(max.) at 66MHz and 4m A(max.) at 33MHz
- Low active programming current: 15m A (max.)
- Low active erase current: 15m A (max.)
- Low standby current: 10u A (max.)
- Deep power-down mode 1u A (typical)
- Minimum 100,000 erase/program...
