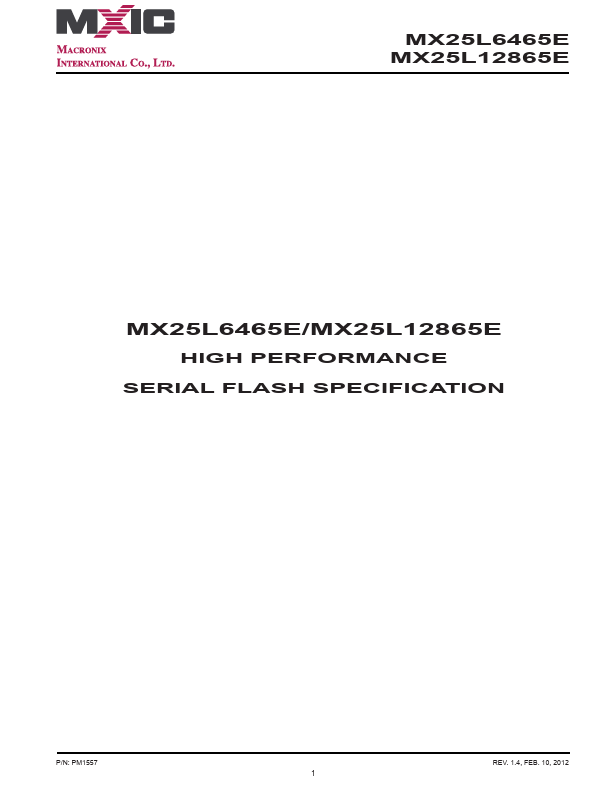

MX25L6465E

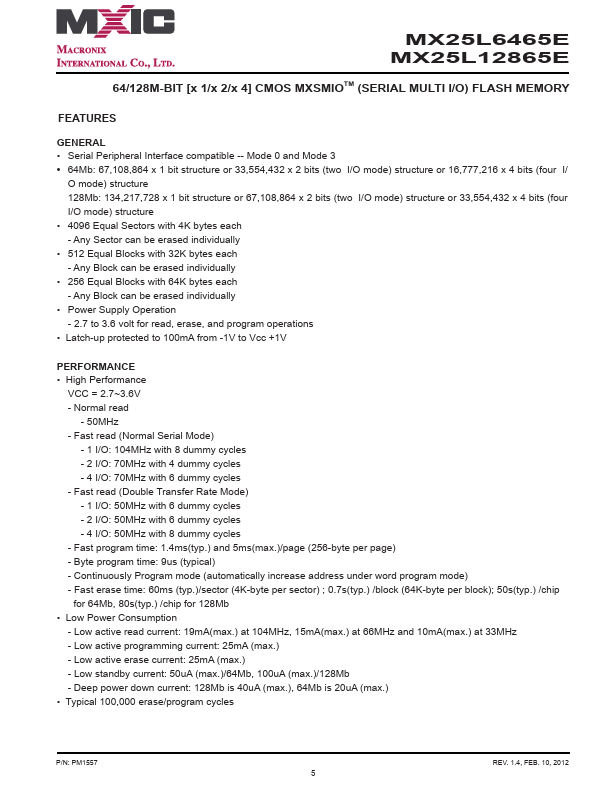

FEATURES
GENERAL
- Serial Peripheral Interface patible -- Mode 0 and Mode 3
- 64Mb: 67,108,864 x 1 bit structure or 33,554,432 x 2 bits (two I/O mode) structure or 16,777,216 x 4 bits (four I/
O mode) structure 128Mb: 134,217,728 x 1 bit structure or 67,108,864 x 2 bits (two I/O mode) structure or 33,554,432 x 4 bits (four I/O mode) structure
- 4096 Equal Sectors with 4K bytes each
- Any Sector can be erased individually
- 512 Equal Blocks with 32K bytes each
- Any Block can be erased individually
- 256 Equal Blocks with 64K bytes each
- Any Block can be erased individually
- Power Supply Operation
- 2.7 to 3.6 volt for read, erase, and program operations
- Latch-up protected to 100m A from -1V to Vcc +1V
PERFORMANCE
- High Performance
VCC = 2.7~3.6V
- Normal read
- 50MHz
- Fast read (Normal Serial Mode)
- 1 I/O: 104MHz with 8 dummy cycles
- 2 I/O: 70MHz with 4 dummy cycles
- 4 I/O: 70MHz with 6 dummy cycles
- Fast read (Double Transfer Rate Mode)
- 1 I/O: 50MHz with 6...
