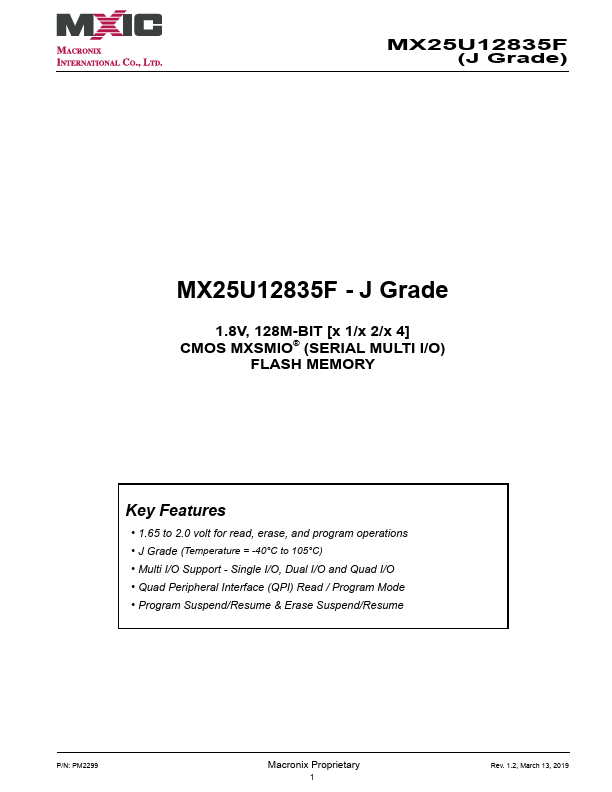

MX25U12835F-J
Features
- 1.65 to 2.0 volt for read, erase, and program operations
- J Grade (Temperature = -40°C to 105°C)
- Multi I/O Support
- Single I/O, Dual I/O and Quad I/O
- Quad Peripheral Interface (QPI) Read / Program Mode
- Program Suspend/Resume & Erase Suspend/Resume
P/N: PM2299
Macronix Proprietary
Rev. 1.2, March 13, 2019
MX25U12835F (J Grade)

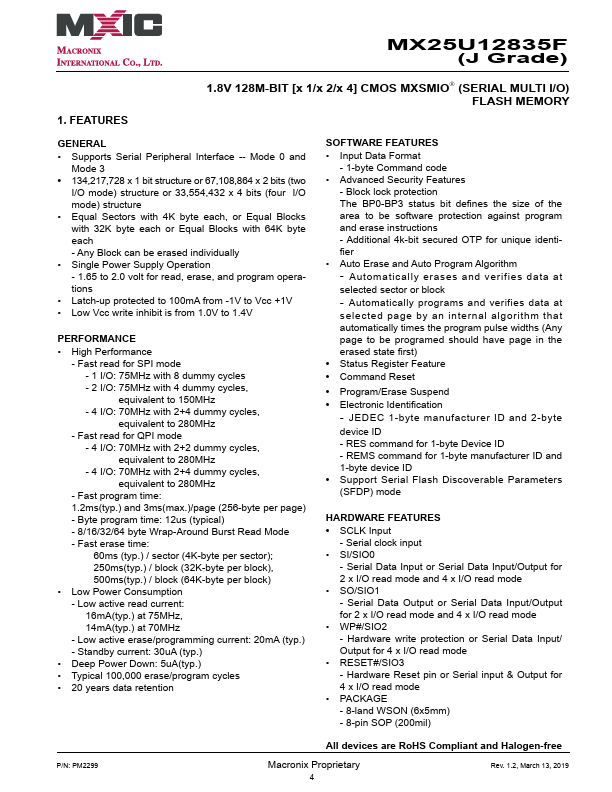

1. FEATURES
1.8V 128M-BIT [x 1/x 2/x 4] CMOS MXSMIO (SERIAL MULTI I/O) FLASH MEMORY
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and
Mode 3
- 134,217,728 x 1 bit structure or 67,108,864 x 2 bits (two
I/O mode) structure or 33,554,432 x 4 bits (four I/O mode) structure
- Equal Sectors with 4K byte each, or Equal Blocks with 32K byte each or Equal Blocks with 64K byte each
- Any Block can be erased individually
- Single Power Supply Operation
- 1.65 to 2.0 volt for read, erase, and program operations
- Latch-up protected to 100m A from -1V to Vcc +1V
- Low Vcc write inhibit is from 1.0V to 1.4V
PERFORMANCE
- High...
