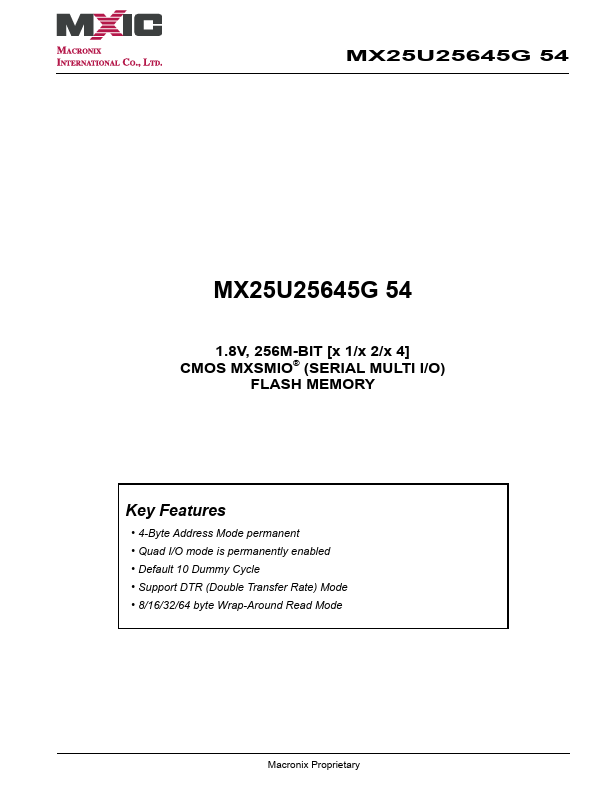

MX25U25645G54
MX25U25645G54 is 1.8V 256M-BIT CMOS FLASH MEMORY manufactured by Macronix.
MX25U25645G 54
MX25U25645G 54
1.8V, 256M-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O)
FLASH MEMORY
Key Features
- 4-Byte Address Mode permanent
- Quad I/O mode is permanently enabled
- Default 10 Dummy Cycle
- Support DTR (Double Transfer Rate) Mode
- 8/16/32/64 byte Wrap-Around Read Mode
Macronix Proprietary
MX25U25645G 54

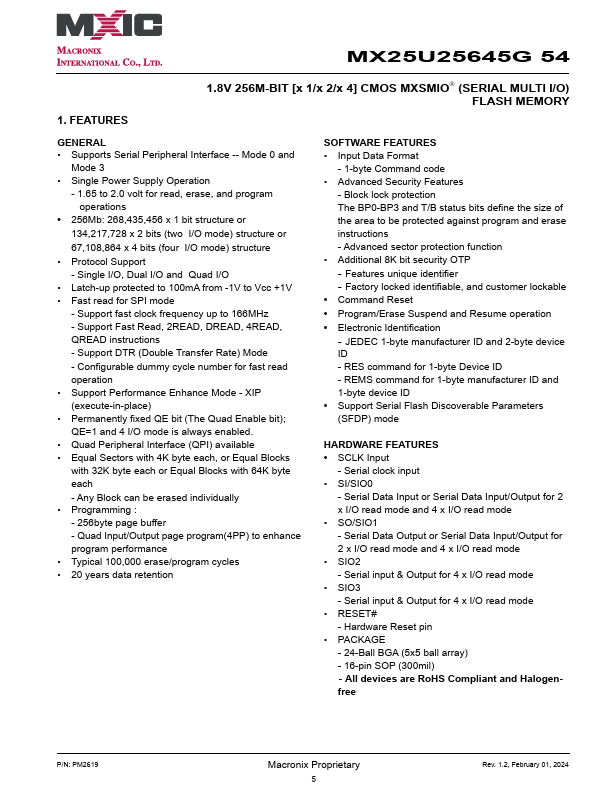

1. Features
1.8V 256M-BIT [x 1/x 2/x 4] CMOS MXSMIO (SERIAL MULTI I/O) FLASH MEMORY
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and
Mode 3
- Single Power Supply Operation
- 1.65 to 2.0 volt for read, erase, and program operations
- 256Mb: 268,435,456 x 1 bit structure or 134,217,728 x 2 bits (two I/O mode) structure or
67,108,864 x 4 bits (four...
