MX30LF1G18AC-J

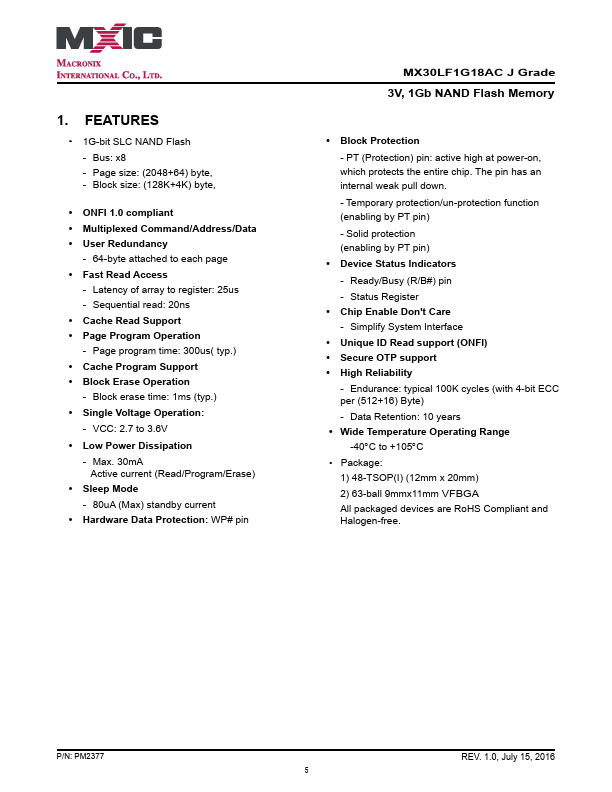

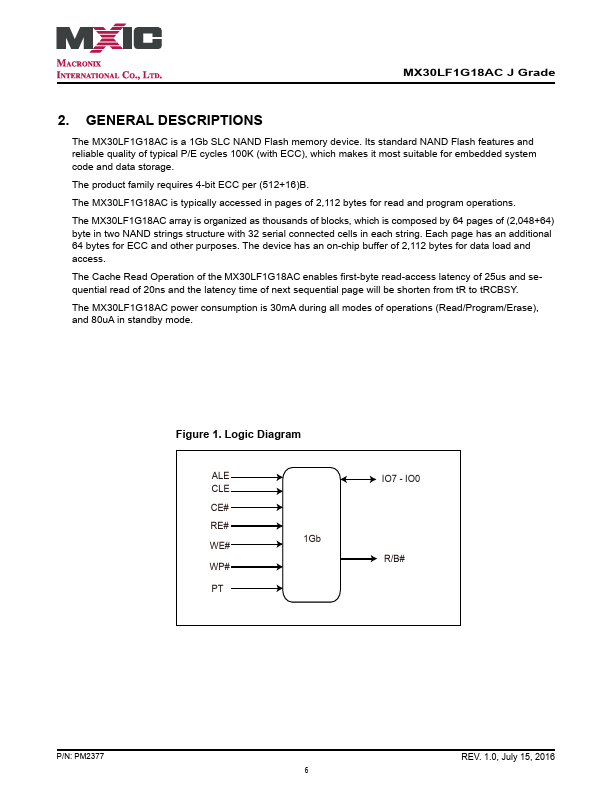

FEATURES
- 1G-bit SLC NAND Flash
- Bus: x8
- Page size: (2048+64) byte,
- Block size: (128K+4K) byte,
- ONFI 1.0 pliant
- Multiplexed mand/Address/Data
- User Redundancy
- 64-byte attached to each page
- Fast Read Access
- Latency of array to register: 25us
- Sequential read: 20ns
- Cache Read Support
- Page Program Operation
- Page program time: 300us( typ.)
- Cache Program Support
- Block Erase Operation
- Block erase time: 1ms (typ.)
- Single Voltage Operation:
- VCC: 2.7 to 3.6V
- Low Power Dissipation
- Max. 30m A
Active current (Read/Program/Erase)
- Sleep Mode
- 80u A (Max) standby current
- Hardware Data Protection: WP# pin
MX30LF1G18AC J Grade
3V, 1Gb NAND Flash Memory
- Block Protection
- PT (Protection) pin: active high at power-on, which protects the entire chip. The pin has an internal weak pull down.
- Temporary protection/un-protection function (enabling by PT pin)
- Solid protection (enabling by PT pin)
- Device...
