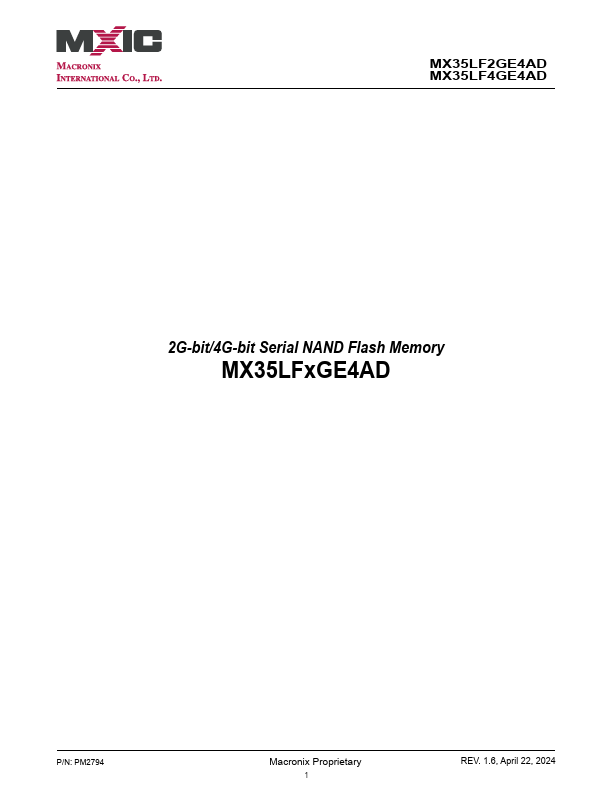

MX35LF2GE4AD

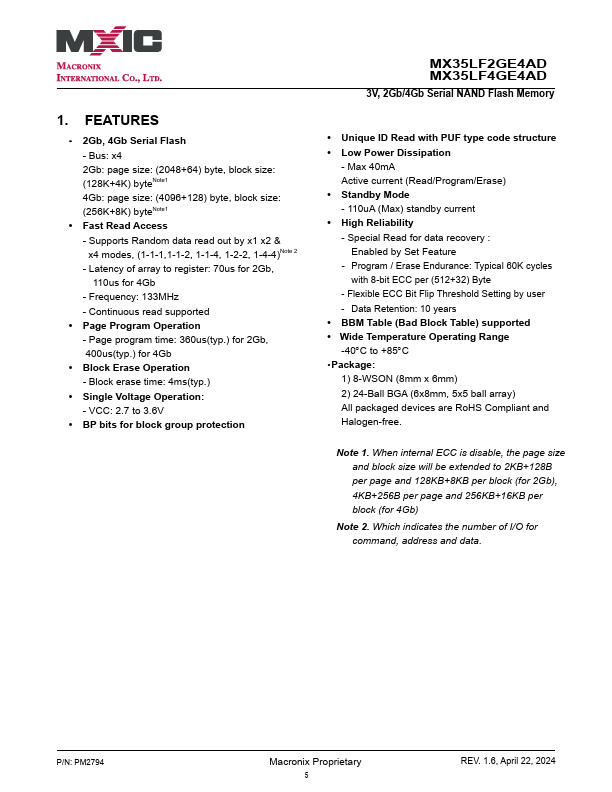

FEATURES
- 2Gb, 4Gb Serial Flash
- Bus: x4 2Gb: page size: (2048+64) byte, block size:
(128K+4K) byte Note1 4Gb: page size: (4096+128) byte, block size:
(256K+8K) byte Note1
- Fast Read Access
- Supports Random data read out by x1 x2 & x4 modes, (1-1-1,1-1-2, 1-1-4, 1-2-2, 1-4-4)Note 2
- Latency of array to register: 70us for 2Gb,
110us for 4Gb
- Frequency: 133MHz
- Continuous read supported
- Page Program Operation
- Page program time: 360us(typ.) for 2Gb,
400us(typ.) for 4Gb
- Block Erase Operation
- Block erase time: 4ms(typ.)
- Single Voltage Operation:
- VCC: 2.7 to 3.6V
- BP bits for block group protection
MX35LF2GE4AD MX35LF4GE4AD 3V, 2Gb/4Gb Serial NAND Flash Memory
- Unique ID Read with PUF type code structure
- Low Power Dissipation
- Max 40m A
Active current (Read/Program/Erase)
- Standby Mode
- 110u A (Max) standby current
- High Reliability
- Special Read for data recovery :
Enabled by Set Feature
- Program / Erase Endurance:...
