MT6701 datasheet by MagnTek.
| Part number | MT6701 |
|---|---|
| Datasheet | MT6701-MagnTek.pdf |
| File Size | 3.35 MB |
| Manufacturer | MagnTek |
| Description | Hall Based Angle Position Encoder Sensor |
|
|

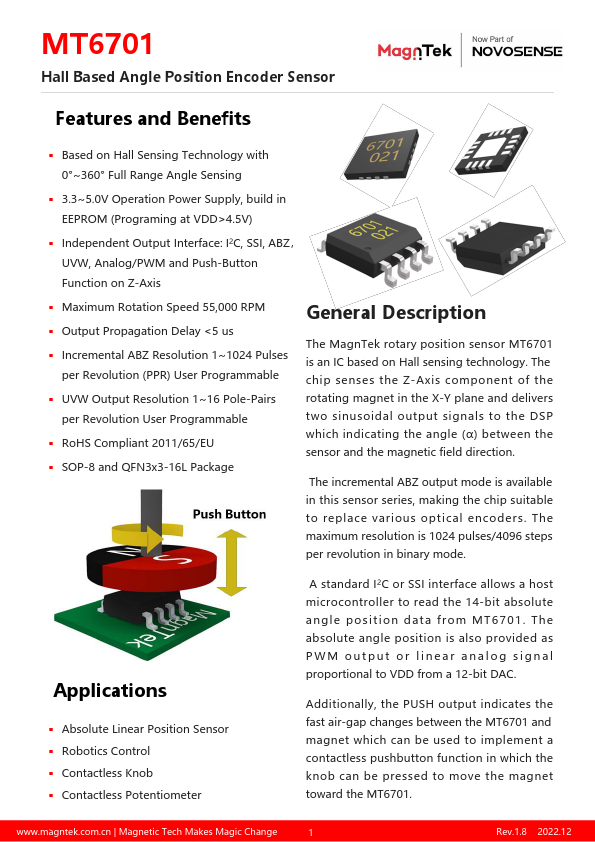

The MagnTek rotary position sensor MT6701 is an IC based on Hall sensing technology. The chip senses the Z-Axis ponent of the rotating magnet in the X-Y plane and delivers two sinusoidal output signals to the DSP which indicating the angle (α) between the sensor and the magnetic field direction. The incremental ABZ output mode is available in this sensor series, making the chip suitable to replace various optical...
