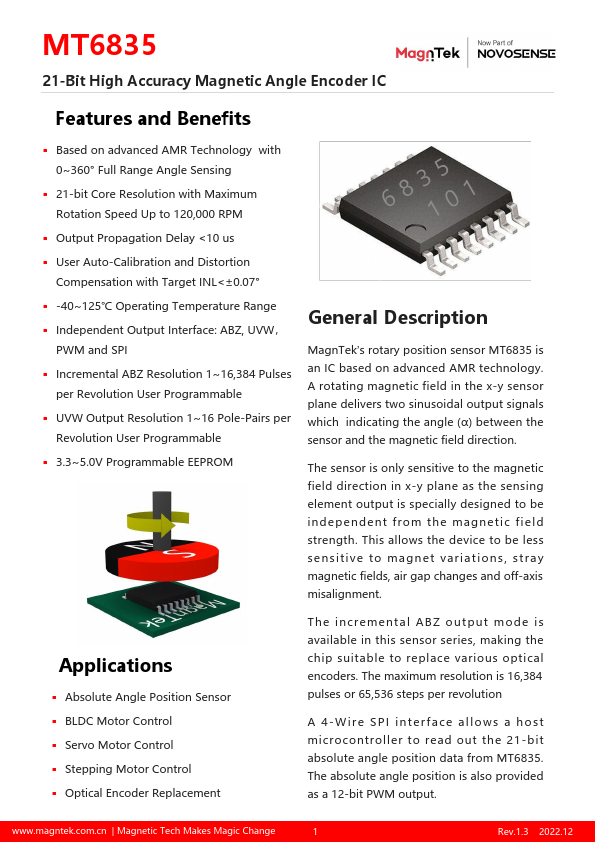

MT6835
Features and Benefits
￭ Based on advanced AMR Technology with 0~360° Full Range Angle Sensing
￭ 21-bit Core Resolution with Maximum Rotation Speed Up to 120,000 RPM
￭ Output Propagation Delay <10 us
￭ User Auto-Calibration and Distortion pensation with Target INL<±0.07°
￭ -40~125℃ Operating Temperature Range ￭ Independent Output Interface: ABZ, UVW，
PWM and SPI ￭ Incremental ABZ Resolution 1~16,384 Pulses per Revolution User Programmable ￭ UVW Output Resolution 1~16 Pole-Pairs per
Revolution User Programmable
General Description
Magn Tek’s rotary position sensor MT6835 is an IC based on advanced AMR technology. A rotating magnetic field in the x-y sensor plane delivers two sinusoidal output signals which indicating the angle (α) between the sensor and the magnetic field direction.
￭ 3.3~5.0V Programmable EEPROM
The sensor is only sensitive to the magnetic field direction in x-y plane as the sensing element output is specially designed to be independent from the magnetic field...
