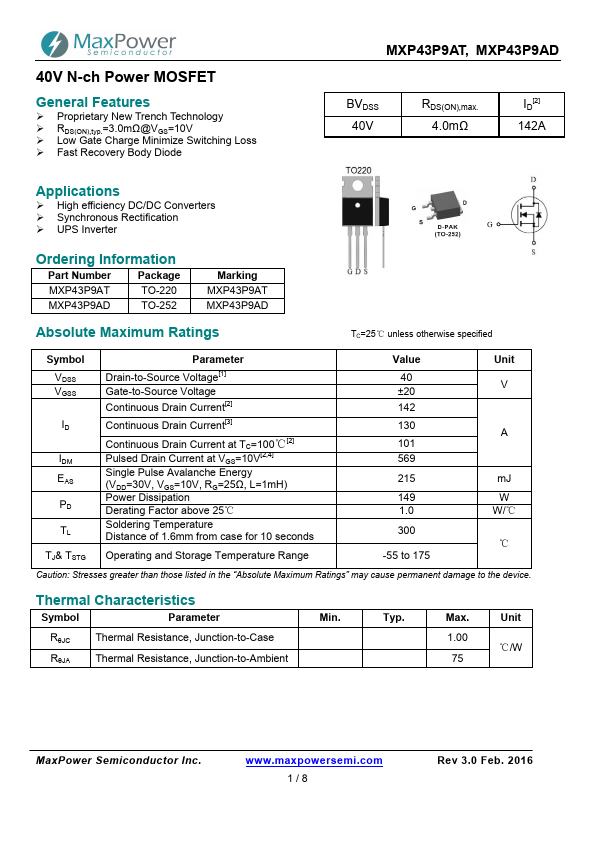

MXP43P9AD
Features
- Proprietary New Trench Technology
- RDS(ON),typ.=3.0mΩ@VGS=10V
- Low Gate Charge Minimize Switching Loss
- Fast Recovery Body Diode
MXP43P9AT, MXP43P9AD
BVDSS 40V
RDS(ON),max. 4.0mΩ
ID[2] 142A
Applications
- High efficiency DC/DC Converters
- Synchronous Rectification
- UPS Inverter
Ordering Information
Part Number Package
MXP43P9AT
TO-220
TO-252
Marking MXP43P9AT MXP43P9AD
Absolute Maximum Ratings
TC=25℃ unless otherwise specified
Symbol VDSS VGSS
IDM EAS PD TL TJ& TSTG
Parameter Drain-to-Source Voltage[1] Gate-to-Source Voltage Continuous Drain Current[2]
Continuous Drain Current[3]
Continuous Drain Current at TC=100℃[2]
Pulsed Drain Current at VGS=10V[2,4] Single Pulse Avalanche Energy (VDD=30V, VGS=10V, RG=25Ω, L=1m H) Power Dissipation Derating Factor above 25℃ Soldering Temperature Distance of 1.6mm from case for 10 seconds
Operating and Storage Temperature Range
Value 40 ±20 142 130 101 569 215 149 1.0 300
-55 to 175
Unit V
A m J W W/℃...
