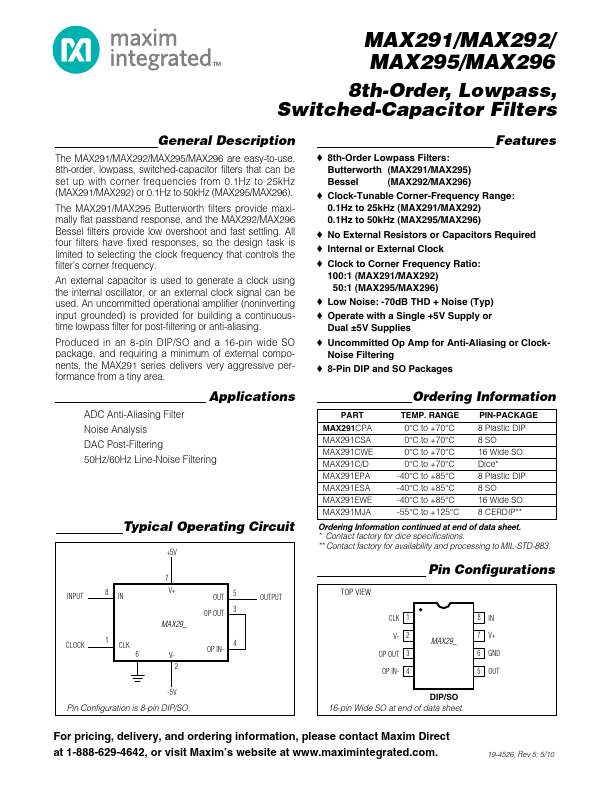

MAX295 - Switched-Capacitor Filters

Download the MAX295 datasheet PDF. This datasheet also covers the MAX291 variant, as both devices belong to the same switched-capacitor filters family and are provided as variant models within a single manufacturer datasheet.

General Description

The MAX291/MAX292/MAX295/MAX296 are easy-to-use, 8th-order, lowpass, switched-capacitor filters that can be set up with corner frequencies from 0.1Hz to 25kHz (MAX291/MAX292) or 0.1Hz to 50kHz (MAX295/MAX296).

Key Features

  • o 8th-Order Lowpass Filters: Butterworth (MAX291/MAX295) Bessel (MAX292/MAX296) o Clock-Tunable Corner-Frequency Range: 0.1Hz to 25kHz (MAX291/MAX292) 0.1Hz to 50kHz (MAX295/MAX296) o No External Resistors or Capacitors Required o Internal or External Clock o Clock to Corner Frequency Ratio: 100:1 (MAX291/MAX292) 50:1 (MAX295/MAX296) o Low Noise: -70dB THD + Noise (Typ) o Operate with a Single +5V Supply or Dual ±5V Supplies o Uncommitted Op Amp for Anti-Aliasing or ClockNoise Filteri.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MAX291-MaximIntegrated.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MAX293 8th-Order / Lowpass / Elliptic / Switched-Capacitor Filters Maxim
MAX294 8th-Order / Lowpass / Elliptic / Switched-Capacitor Filters Maxim
MAX297 8th-Order / Lowpass / Elliptic / Switched-Capacitor Filters Maxim
MAX2981 Integrated Powerline Communication Analog Front-End Transceiver And Line Driver Maxim Integrated Products
MAX2990 10kHz to 490kHz OFDM-Based Power Line Communication Modem Maxim Integrated Products

Other Datasheets by Maxim Integrated (now Analog Devices)

Part Number Description
MAX2900 200mW Single-Chip Transmitter
MAX2901 200mW Single-Chip Transmitter
MAX2902 200mW Single-Chip Transmitter
MAX2903 200mW Single-Chip Transmitter
MAX2904 200mW Single-Chip Transmitter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

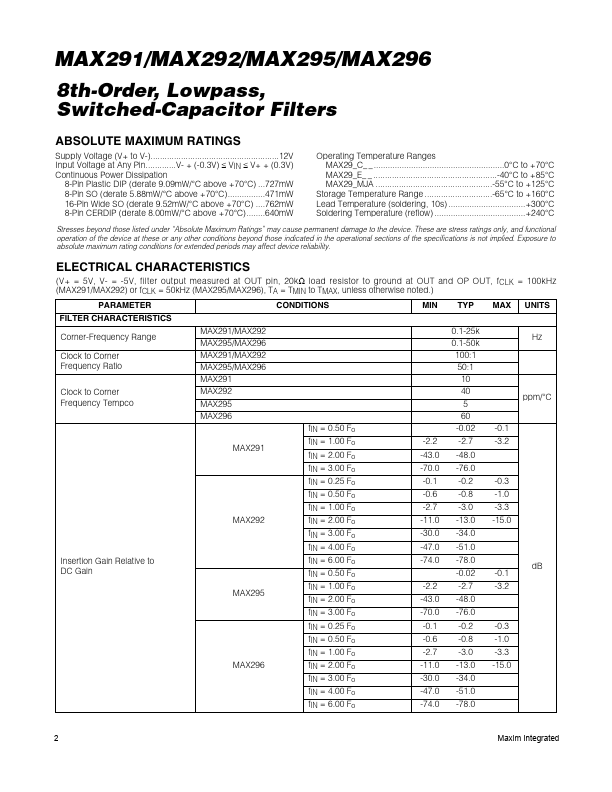

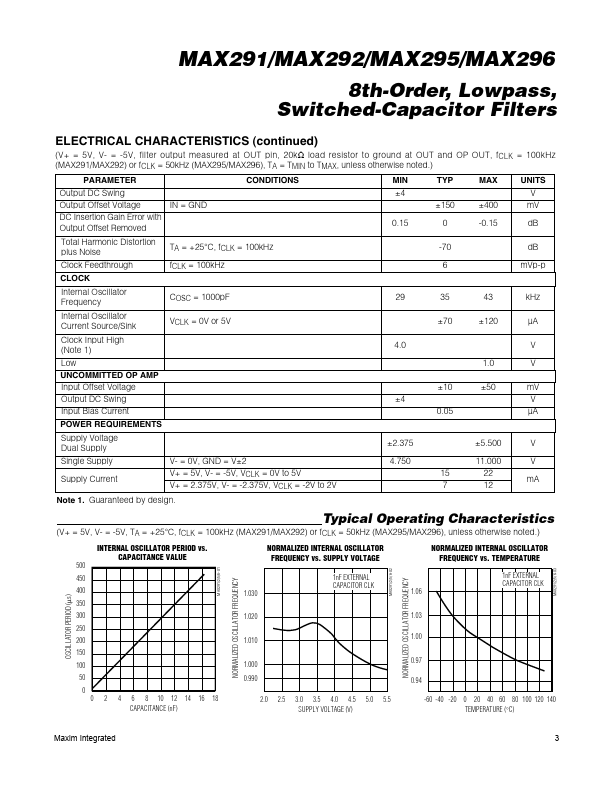

AVAILABLE MAX291/MAX292/ MAX295/MAX296 8th-Order, Lowpass, Switched-Capacitor Filters General Description The MAX291/MAX292/MAX295/MAX296 are easy-to-use, 8th-order, lowpass, switched-capacitor filters that can be set up with corner frequencies from 0.1Hz to 25kHz (MAX291/MAX292) or 0.1Hz to 50kHz (MAX295/MAX296). The MAX291/MAX295 Butterworth filters provide maximally flat passband response, and the MAX292/MAX296 Bessel filters provide low overshoot and fast settling. All four filters have fixed responses, so the design task is limited to selecting the clock frequency that controls the filter’s corner frequency. An external capacitor is used to generate a clock using the internal oscillator, or an external clock signal can be used.
