MAX4952A - Dual Equalized 1.5/3.0/6.0 GT/s SAS/SATA Redriver

General Description

The MAX4952A dual-channel redriver is designed to redrive one full lane of SAS or SATA signals up to 6.0GT/s (gigatransfers per second) and operates from a single +3.3V supply.

Key Features

  • independent input equalization and output preemphasis. The MAX4952A enhances signal integrity at the receiver by equalizing the signal at the input and establishing preemphasis at the output of the device. SAS and SATA OOB (Out-of-Band) signaling is supported using high-speed amplitude detection on the inputs and squelch on the corresponding outputs. Inputs and outputs are all internally 50Ω terminated and must be AC-coupled to the SAS/SATA controller IC and SAS/SATA device. The MAX4952A is avai.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAX4952B Dual 1.5/3.0/6.0Gbps SAS/SATA Redriver Maxim Integrated Products
MAX495 Single/Dual/Quad / Micropower / Single-Supply Rail-to-Rail Op Amps Maxim
MAX4951 SATA I/SATA II Bidirectional Re-Driver Maxim Integrated Products
MAX4959 High-Voltage OVP Maxim Integrated Products
MAX490 Low-Power / Slew-Rate-Limited RS-485/RS-422 Transceivers Maxim

Other Datasheets by Maxim Integrated (now Analog Devices)

Part Number Description
MAX4906 FHigh-/Full-Speed USB 2.0 Switches
MAX4908 Dual 3:1 Clickless Audio Multiplexers
MAX4909 Dual 3:1 Clickless Audio Multiplexers
MAX4919B Battery Power-Up Logic
MAX4920B Battery Power-Up Logic

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

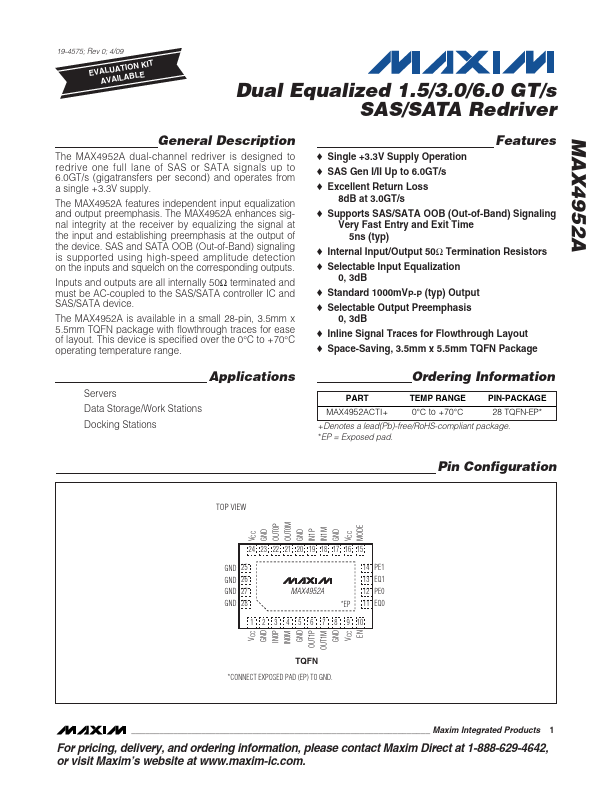

MAX4952A 19-4575; Rev 0; 4/09 EVAALVUAAILTAIOBNLEKIT Dual Equalized 1.5/3.0/6.0 GT/s SAS/SATA Redriver General Description The MAX4952A dual-channel redriver is designed to redrive one full lane of SAS or SATA signals up to 6.0GT/s (gigatransfers per second) and operates from a single +3.3V supply. The MAX4952A features independent input equalization and output preemphasis. The MAX4952A enhances signal integrity at the receiver by equalizing the signal at the input and establishing preemphasis at the output of the device. SAS and SATA OOB (Out-of-Band) signaling is supported using high-speed amplitude detection on the inputs and squelch on the corresponding outputs.
