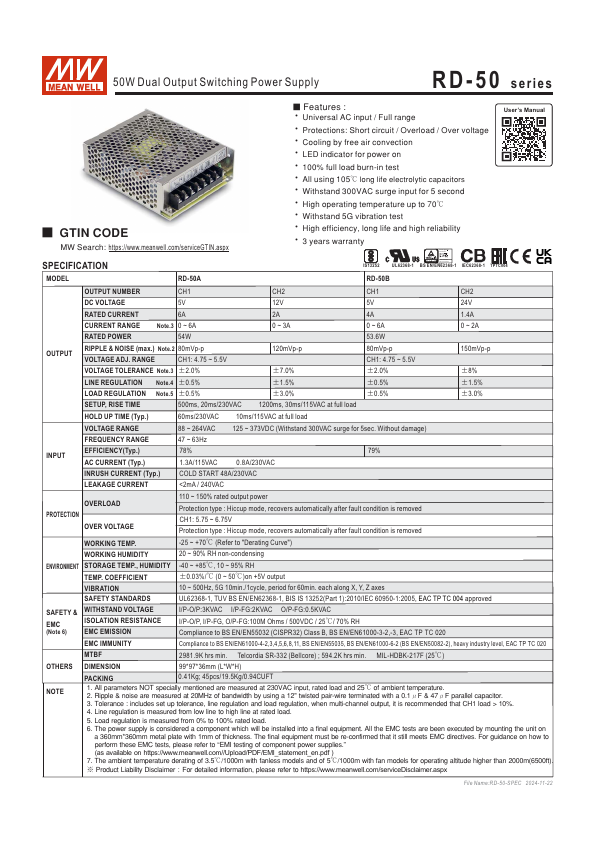

RD-50B
Key Features
- All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature
- Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor
- Tolerance : includes set up tolerance, line regulation and load regulation, when multi-channel output, it is remended that CH1 load > 10%
- Line regulation is measured from low line to high line at rated load
- Load regulation is measured from 0% to 100% rated load
- The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000
