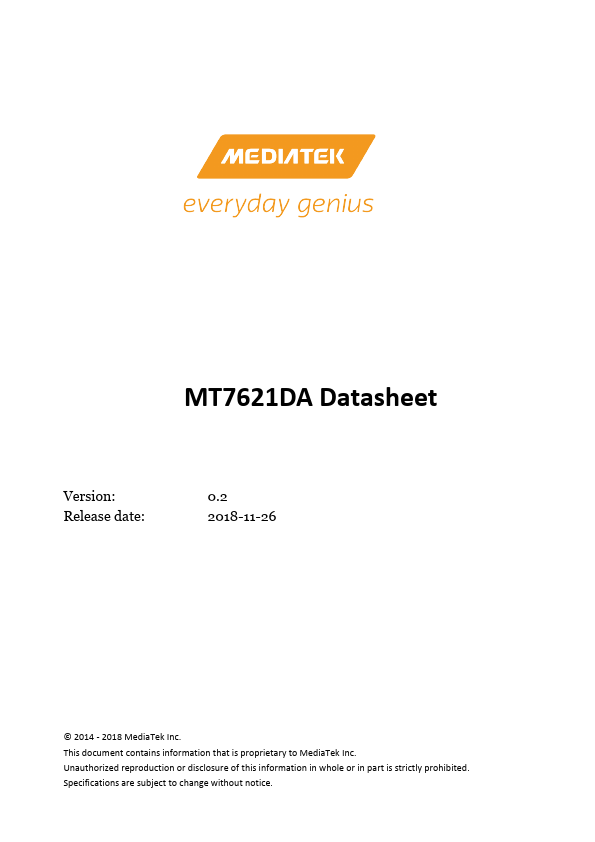

MT7621DA

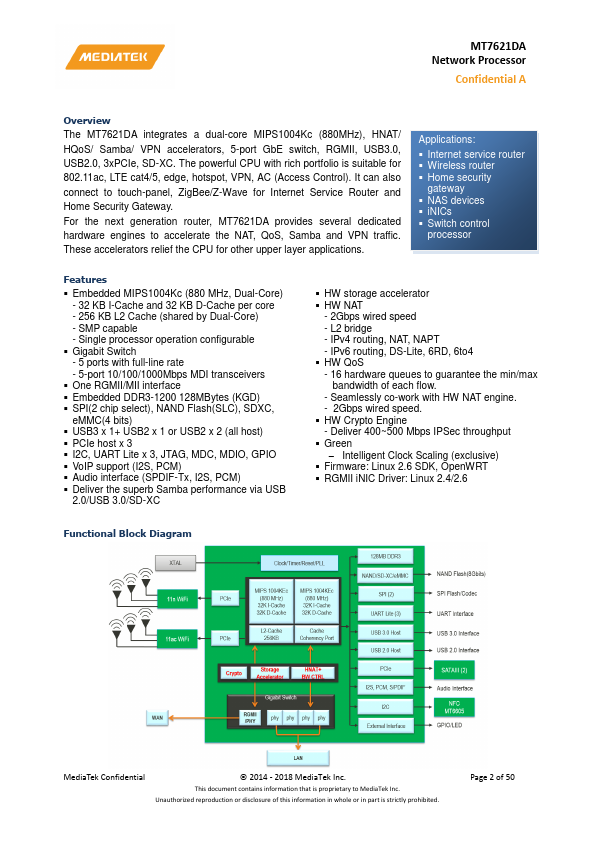

Overview
- Embedded MIPS1004Kc (880 MHz, Dual-Core) - 32 KB I-Cache and 32 KB D-Cache per core - 256 KB L2 Cache (shared by Dual-Core) - SMP capable - Single processor operation configurable
- Gigabit Switch - 5 ports with full-line rate - 5-port 10/100/1000Mbps MDI transceivers
- One RGMII/MII interface
- Embedded DDR3-1200 128MBytes (KGD)
- SPI(2 chip select), NAND Flash(SLC), SDXC, eMMC(4 bits)
- USB3 x 1+ USB2 x 1 or USB2 x 2 (all host)
- PCIe host x 3
- I2C, UART Lite x 3, JTAG, MDC, MDIO, GPIO
- VoIP support (I2S, PCM)
- Audio interface (SPDIF-Tx, I2S, PCM)
