MIC5258 - CMOS LDO Regulator

Description

The MIC5258 is an efficient, precise CMOS voltage regulator with power good output.

The MIC5258 offers better than 3% initial accuracy, and constant ground current (typically 100µA)over load .

Features

  • include current limit, thermal shutdown, a pushpull output for faster transient response, and an active clamp to speed up device turnoff. Available in the IttyBitty™ SOT-23-5 package, the MIC5258 is a fixed 1.2V regulator. Features.
  • Power Good indicator.
  • Load independent, ultralow ground current: 100µA.
  • 150mA output current.
  • Current limiting.
  • Thermal shutdown.
  • Tight load and line regulation.
  • “Zero” off-mode current.
  • Stabilit.

📥 Download Datasheet

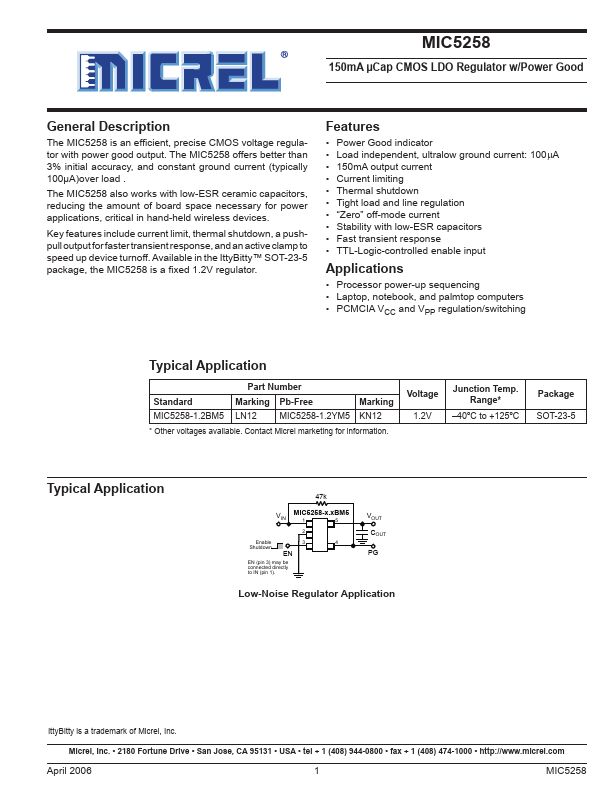

Datasheet preview – MIC5258

Datasheet Details

Part number MIC5258
Manufacturer Micrel Semiconductor
File Size 458.19 KB
Description CMOS LDO Regulator
Datasheet download datasheet MIC5258 Datasheet

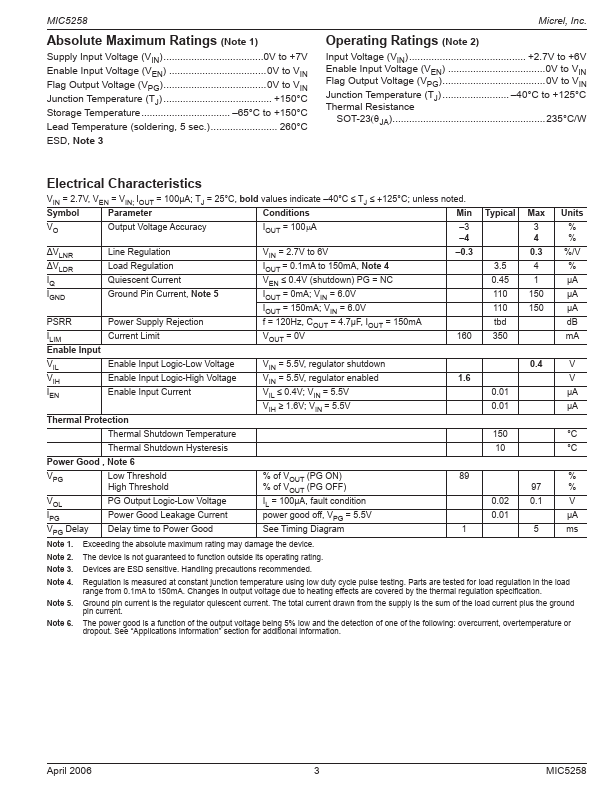

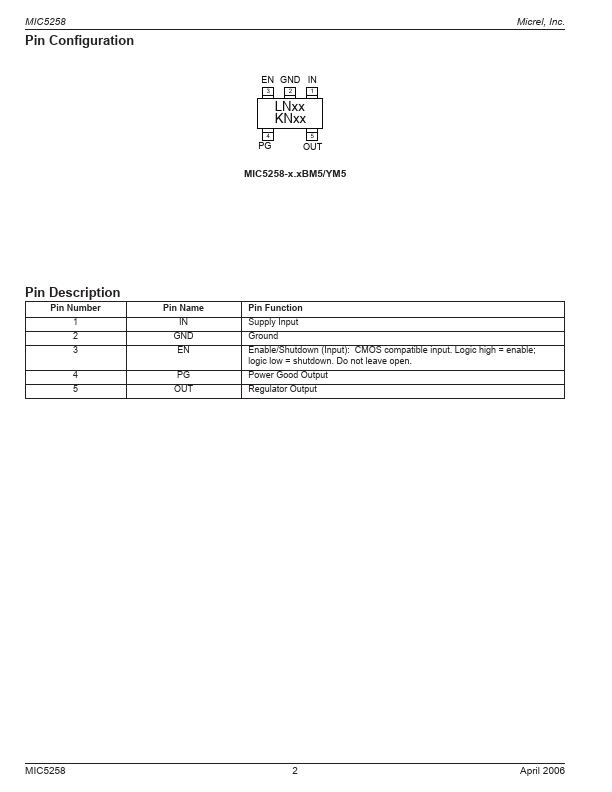

Additional preview pages of the MIC5258 datasheet.

📁 Similar Datasheet

  • MIC5200 - 100mA Low-Dropout Regulator (Microchip)
  • MIC5202 - Dual 100mA Low-Dropout Regulator (Microchip)
  • MIC5205 - 150mA Low-Noise LDO Regulator (Microchip)
  • MIC5210 - Dual 150mA LDO Regulator (Microchip)
  • MIC5211 - Dual uCap 80mA LDO Regulator (Microchip)
  • MIC5232 - 10mA Ultra-Low Quiescent Current uCap LDO (Microchip)
  • MIC5236 - Low Quiescent Current uCap LDO Regulator (Microchip)
  • MIC5239 - Low Quiescent Current 500mA uCap LDO Regulator (Microchip)
  • MIC5249 - 300mA uCap LDO (Microchip)
  • MIC5283 - High-PSRR Linear Regulator (Microchip)
Other Datasheets by Micrel Semiconductor
  • MIC5250 - Dual 150mA Cap CMOS LDO Regulator Preliminary Information
  • MIC5252 - Low Noise uCap CMOS LDO
  • MIC5253 - 100mA Low Noise UCap Teeny LDO
  • MIC5254 - Dual 150mA uCap LDO
  • MIC5255 - 150mA Low Noise UCap CMOS LDO
  • MIC5256 - 150mA UCap LDO with Error Flag
  • MIC5200 - 100mA Low-Dropout Voltage Regulator Preliminary Information
  • MIC5201 - 200mA Low-Dropout Voltage Regulator

Full PDF Text Transcription

Click to expand full text
MIC5258 MIC5258 Micrel, Inc. 150mA µCap CMOS LDO Regulator w/Power Good General Description The MIC5258 is an efficient, precise CMOS voltage regulator with power good output. The MIC5258 offers better than 3% initial accuracy, and constant ground current (typically 100µA)over load . The MIC5258 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. Key features include current limit, thermal shutdown, a pushpull output for faster transient response, and an active clamp to speed up device turnoff. Available in the IttyBitty™ SOT-23-5 package, the MIC5258 is a fixed 1.2V regulator.
