AZ23B2V4 - 300 mW Zener Diode

Features

  • Dual Zeners in Common Anode Configuration.
  • △ V z for Both Diodes in One Case is ≤2%.
  • Ideally Suited for Automated Assembly Processes.
  • Moisture Sensitivity Level 1.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Halogen Free. “Green” Device (Note 1).
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) 300 mW Zener Diode 2.4 to 47 Volts Maximum Ratings.
  • Operating Junction Temperatur.

📥 Download Datasheet

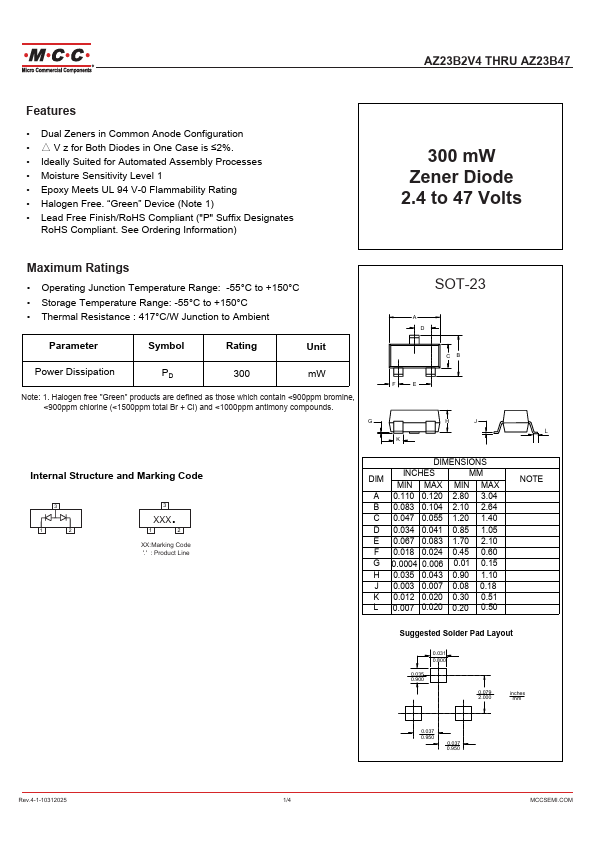

Datasheet preview – AZ23B2V4

📁 Similar Datasheet

  • AZ23B2V4 - Small Signal Zener Diode (Vishay)
  • AZ23B2V2 - Small Signal Zener Diode (Vishay)
  • AZ23B2V7 - Small Signal Zener Diode (Vishay)
  • AZ23B2V7-G - Small Signal Zener Diodes (Vishay)
  • AZ23B20 - Small Signal Zener Diode (Vishay)
  • AZ23B20-G - Small Signal Zener Diodes (Vishay)
  • AZ23B22 - Small Signal Zener Diode (Vishay)
  • AZ23B22-G - Small Signal Zener Diodes (Vishay)
  • AZ23B24 - Small Signal Zener Diode (Vishay)
  • AZ23B24-G - Small Signal Zener Diodes (Vishay)
Other Datasheets by Micro Commercial Components

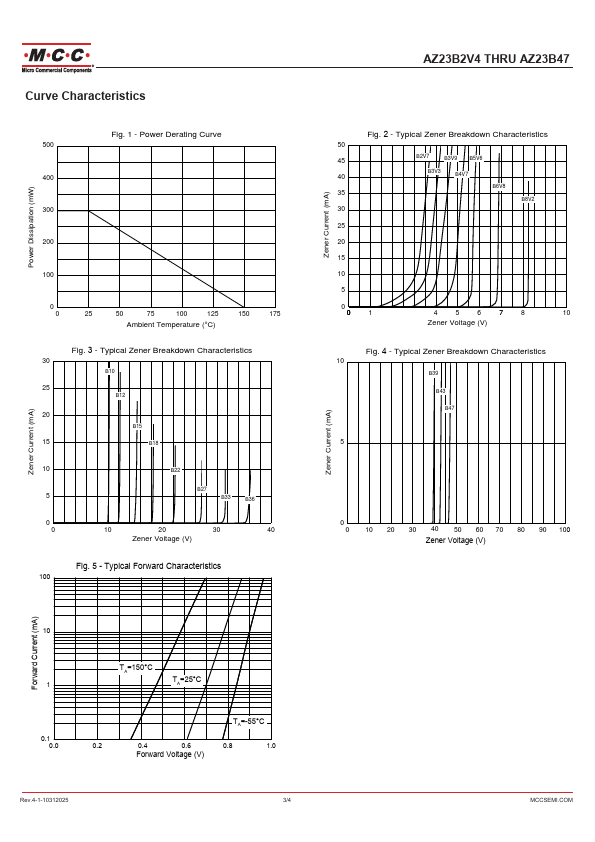

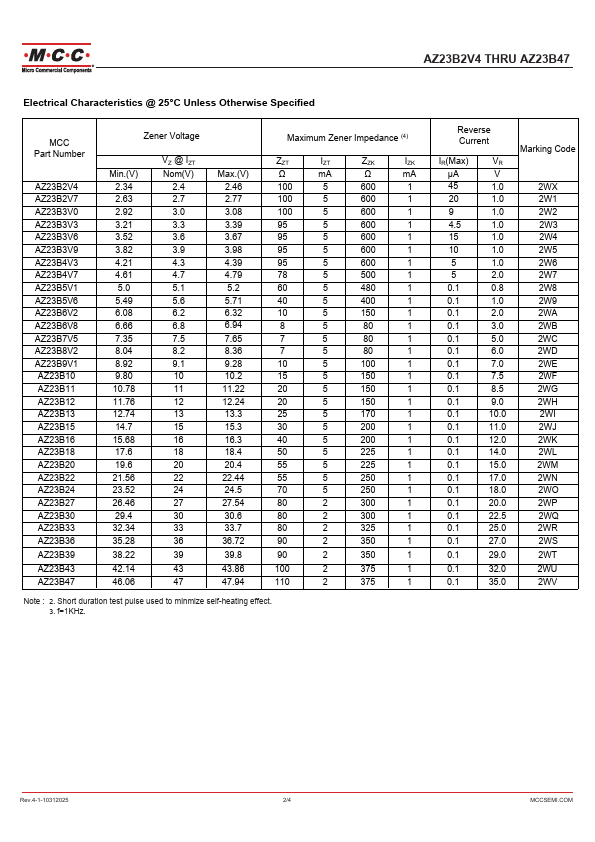

    Full PDF Text Transcription

    Click to expand full text
    AZ23B2V4 THRU AZ23B47 Features • Dual Zeners in Common Anode Configuration • △ V z for Both Diodes in One Case is ≤2%. • Ideally Suited for Automated Assembly Processes • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Halogen Free. “Green” Device (Note 1) • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) 300 mW Zener Diode 2.4 to 47 Volts Maximum Ratings • Operating Junction Temperature Range: -55°C to +150°C • Storage Temperature Range: -55°C to +150°C • Thermal Resistance : 417°C/W Junction to Ambient Parameter Symbol Rating Unit Power Dissipation PD 300 mW Note: 1.
