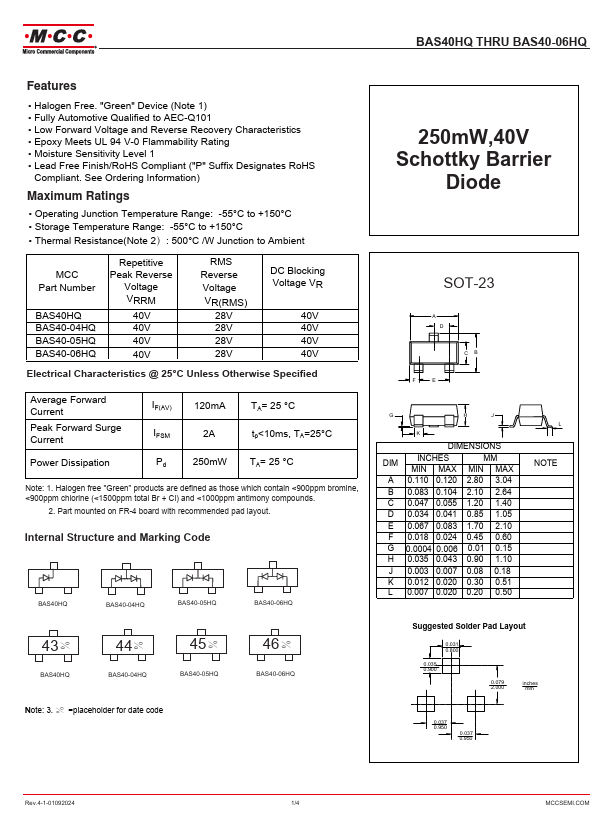

BAS40-05HQ
Features
- Halogen Free. "Green" Device (Note 1)
- Fully Automotive Qualified to AEC-Q101
- Low Forward Voltage and Reverse Recovery Characteristics
- Epoxy Meets UL 94 V-0 Flammability Rating
- Moisture Sensitivity Level 1
- Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information)
Maximum Ratings
- Operating Junction Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance(Note 2）: 500°C /W Junction to Ambient
MCC Part Number
BAS40HQ BAS40-04HQ BAS40-05HQ BAS40-06HQ
Repetitive Peak Reverse
Voltage VRRM
40V 40V 40V
40V
RMS Reverse Voltage VR(RMS)
28V 28V 28V 28V
DC Blocking Voltage VR
40V 40V 40V 40V
Electrical Characteristics @ 25°C Unless Otherwise Specified
Average Forward Current Peak Forward Surge Current
Power Dissipation
IF(AV) IFSM Pd
120m A 2A
250m W
TA= 25 °C tp<10ms, TA=25°C TA= 25 °C
Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm...
