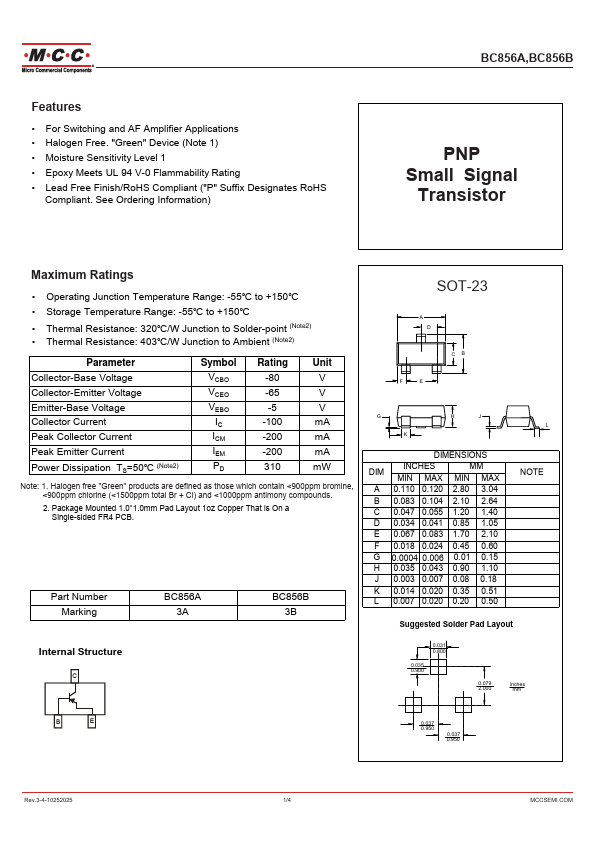

BC856A
BC856A is PNP Small Signal Transistor manufactured by Micro Commercial Components.
Features
- For Switching and AF Amplifier Applications
- Halogen Free. "Green" Device (Note 1)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information)
BC856A,BC856B
PNP Small Signal
Transistor
Maximum Ratings
- Operating Junction Temperature Range: -55℃ to +150℃
- Storage Temperature Range: -55℃ to +150℃
- Thermal Resistance: 320℃/W Junction to Solder-point (Note2)
- Thermal Resistance: 403℃/W Junction to Ambient (Note2)
Parameter
Symbol Rating Unit
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Peak Collector Current Peak Emitter Current Power Dissipation TS=50℃ (Note2)
VCBO VCEO VEBO
IC ICM IEM PD
-80
-65
-5
-100 m A
-200 m A
-200 m A
310 m W
Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds.
2. Package Mounted 1.0- 1.0mm Pad Layout 1oz Copper That is On a Single-sided FR4 PCB.
Part Number Marking
BC856A...
