MB05S Datasheet

Manufacturer: Micro Commercial Components

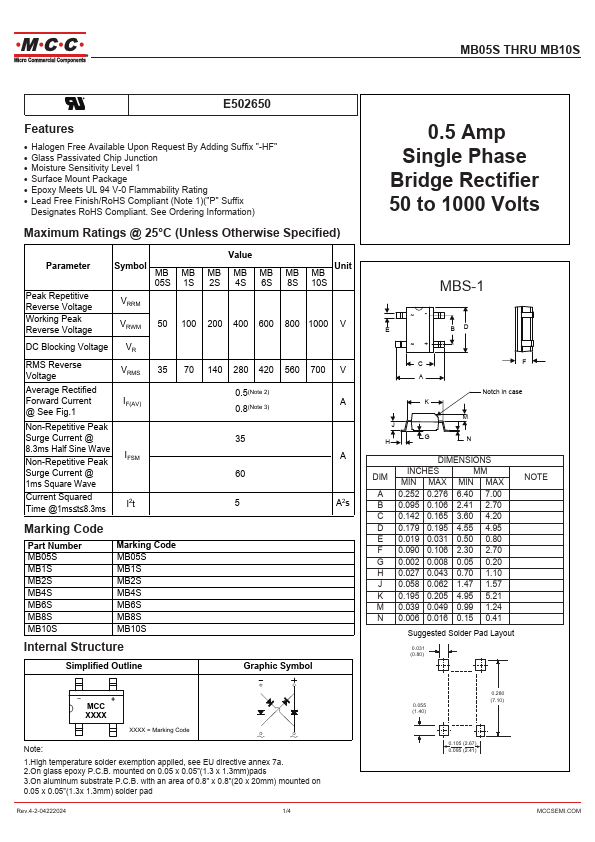

MB05S datasheet preview

Datasheet Details

Part number	MB05S
Datasheet	MB05S_MicroCommercialComponents.pdf
File Size	347.16 KB
Manufacturer	Micro Commercial Components
Description	0.5Amp Single Phase Glass Passivated Bridge Rectifier

MB05S Overview

MB05S THRU MB10S.

MB05S Key Features

Halogen Free Available Upon Request By Adding Suffix "-HF"
Glass Passivated Chip Junction
Moisture Sensitivity Level 1
Surface Mount Package
Epoxy Meets UL 94 V-0 Flammability Rating
Lead Free Finish/RoHS pliant (Note 1)("P" Suffix
) 1RWFKLQFDVH 0 1

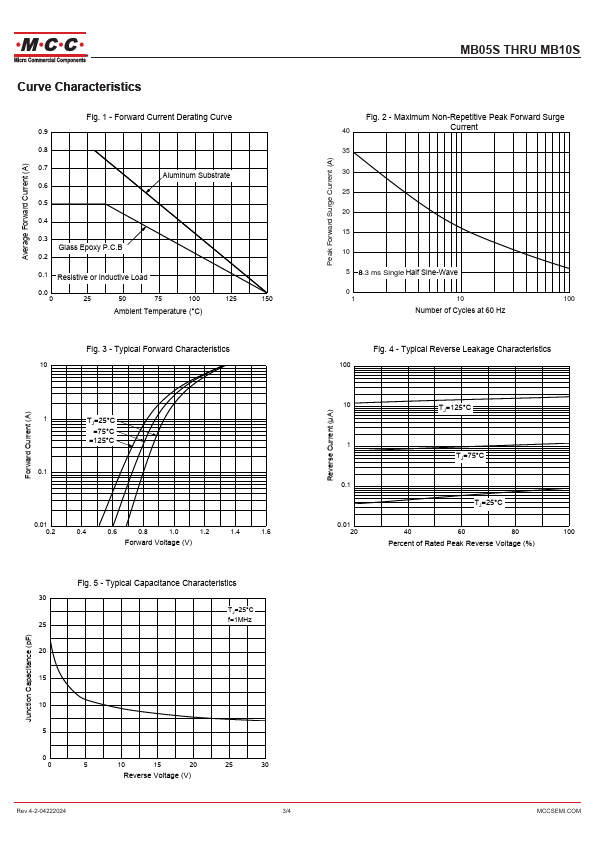

Forward Current Derating Curve
