MB10S Datasheet 0.5Amp Single Phase Glass Passivated Bridge Rectifier

Manufacturer: Micro Commercial Components

Overview: MB05S THRU MB10S &502650.

📥 Download Datasheet

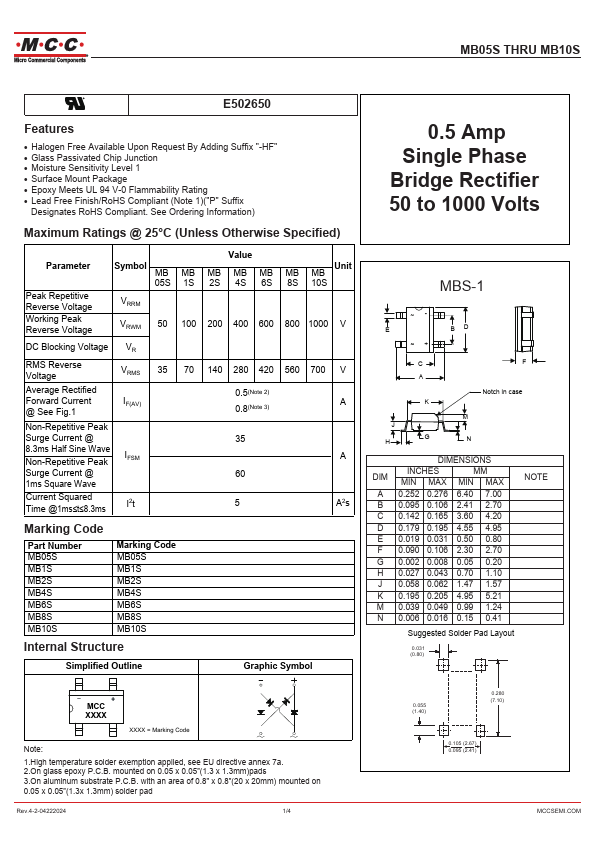

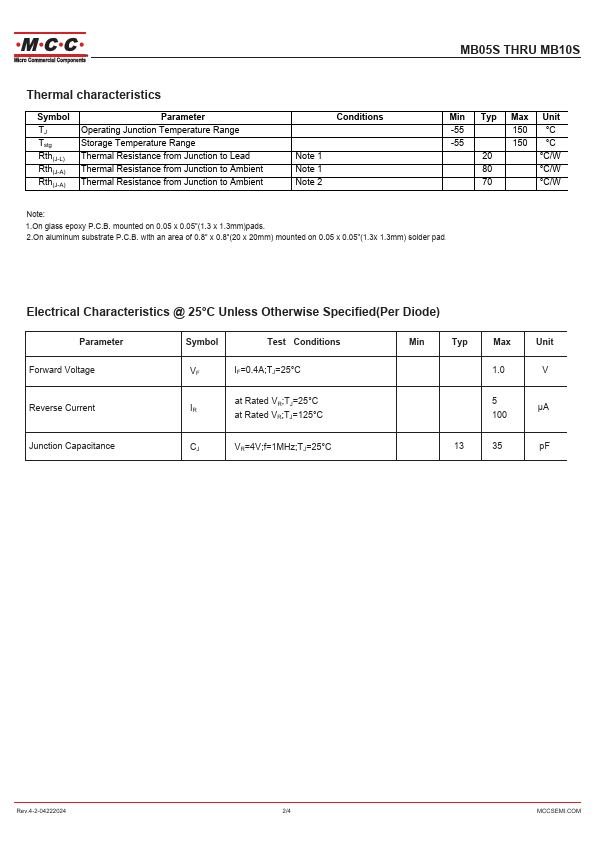

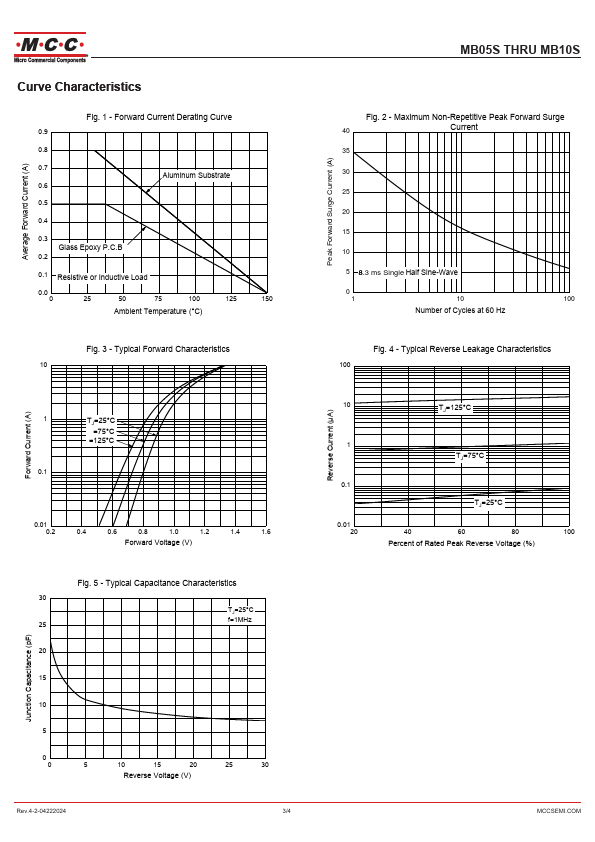

MB10S 0.5amp single phase glass passivated bridge rectifier by Micro Commercial Components - Datasheet Preview

Datasheet Details

Part number	MB10S
Manufacturer	Micro Commercial Components
File Size	416.59 KB
Description	0.5Amp Single Phase Glass Passivated Bridge Rectifier
Download	MB10S Download (PDF)

Key Features

Halogen Free Available Upon Request By Adding Suffix "-HF".
Glass Passivated Chip Junction.
Moisture Sensitivity Level 1.
Surface Mount Package.
Epoxy Meets UL 94 V-0 Flammability Rating.
Lead Free Finish/RoHS Compliant (Note 1)("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C (Unless Otherwise Specified) Parameter Peak Repetitive Reverse Voltage Working Peak Reverse Voltage Value Symbol MB MB MB MB MB.
