MB6S - 0.5Amp Single Phase Glass Passivated Bridge Rectifier

Datasheet Summary

Features

  • Glass Passivated Diode Construction.
  • High Temperature Soldering Guaranteed:260oC/10 Second.
  • Saves Space On Printed Circuit Board.
  • Halogen free available upon request by adding suffix "-HF".
  • Epoxy meets UL 94 V-0 flammability rating.
  • Moisture Sensitivity Level 1.
  • Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) Mechanical Data.
  • Teminals: Plated leads Solderable per MIL-STD-.

📥 Download Datasheet

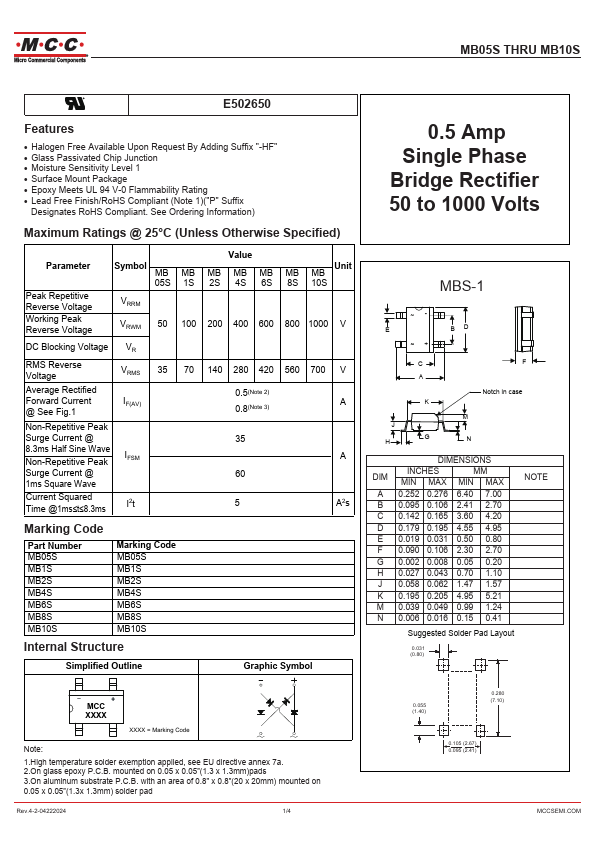

Datasheet preview – MB6S

Datasheet Details

Part number MB6S
Manufacturer Micro Commercial Components
File Size 221.95 KB
Description 0.5Amp Single Phase Glass Passivated Bridge Rectifier
Datasheet download datasheet MB6S Datasheet

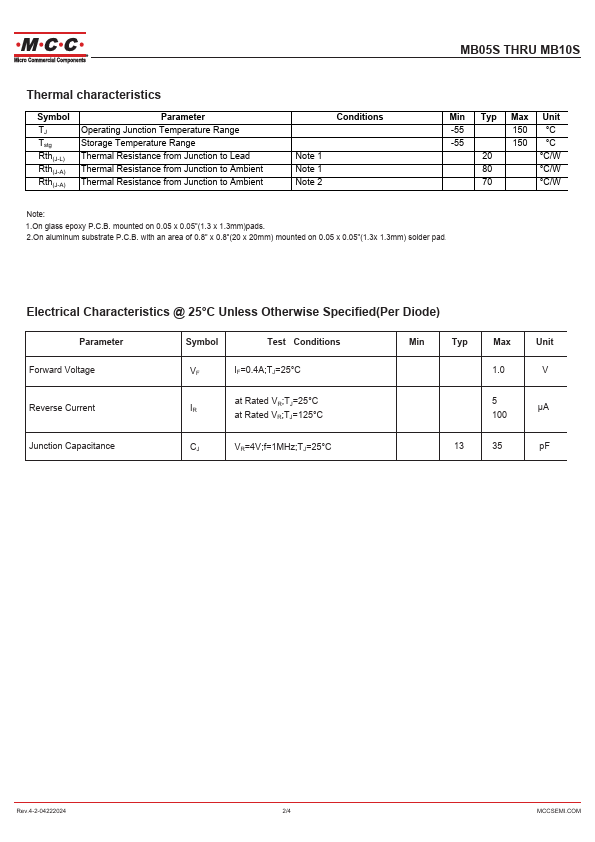

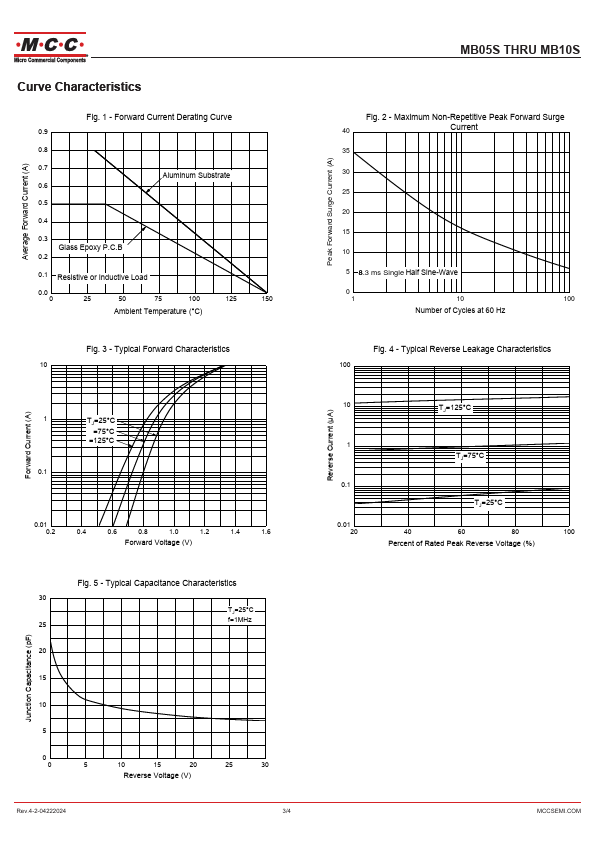

Additional preview pages of the MB6S datasheet.

📁 Similar Datasheet

  • MB6S - 0.8A Surface Mount Glass Passivated Bridge Rectifier (BLUE ROCKET ELECTRONICS)
  • MB6S - 0.5 / 0.8A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers (CITC)
  • MB6S - 0.8A SCHOTTKY BRIDGE RECTIFIER (UTC)
  • MB6S - SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER (Rectron)
  • MB6S - SINGLE-PHASE MINI SURFACE MOUNT BRIDGE RECTIFIER (Dc Components)
  • MB6S - SURFACE MOUNT BRIDGE RECTIFIER (RFE)
  • MB6S - Single-Phase 0.8A Surface Mount Glass Passivated Bridge Rectifier (Sangdest)
  • MB6S - Bridge Rectifiers (Multicomp)
  • MB6S - SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIERS (HY)
  • MB6S - SILICON BRIDGE RECTIFIERS (GME)
Other Datasheets by Micro Commercial Components
  • MB6M - 0.5Amp Single Phase Glass Passivated Bridge Rectifier

Full PDF Text Transcription

Click to expand full text
MCC TM Micro Commercial Components   omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# MB05S THRU MB10S Features • Glass Passivated Diode Construction • High Temperature Soldering Guaranteed:260oC/10 Second • Saves Space On Printed Circuit Board • Halogen free available upon request by adding suffix "-HF" • Epoxy meets UL 94 V-0 flammability rating • Moisture Sensitivity Level 1 • Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant.
