MB8S - 0.5Amp Single Phase Glass Passivated Bridge Rectifier

Key Features

  • Halogen Free Available Upon Request By Adding Suffix "-HF".
  • Glass Passivated Chip Junction.
  • Moisture Sensitivity Level 1.
  • Surface Mount Package.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant (Note 1)("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C (Unless Otherwise Specified) Parameter Peak Repetitive Reverse Voltage Working Peak Reverse Voltage Value Symbol MB MB MB MB MB.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MB8S 0.8A Surface Mount Glass Passivated Bridge Rectifier BLUE ROCKET ELECTRONICS
MB8S 0.5 / 0.8A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers CITC
MB8S 0.8A SCHOTTKY BRIDGE RECTIFIER UTC
MB8S SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER Rectron
MB8S SINGLE-PHASE MINI SURFACE MOUNT BRIDGE RECTIFIER Dc Components

Other Datasheets by Micro Commercial Components

Part Number Description
MB805 Single Phase Bridge Rectifier
MB81 Single Phase Bridge Rectifier
MB810 Single Phase Bridge Rectifier
MB82 8 Amp Single Phase Bridge Rectifier 50 to 1000 Volts
MB84 Single Phase Bridge Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

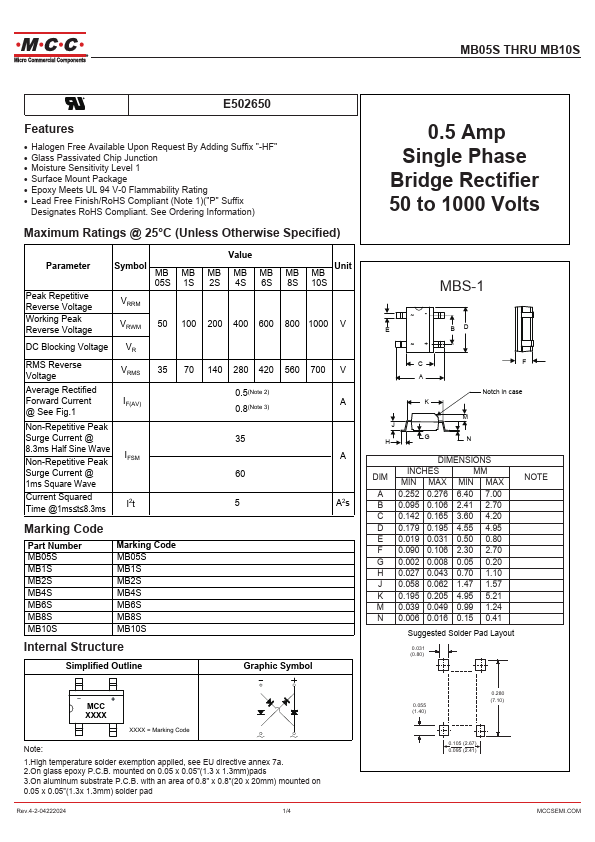

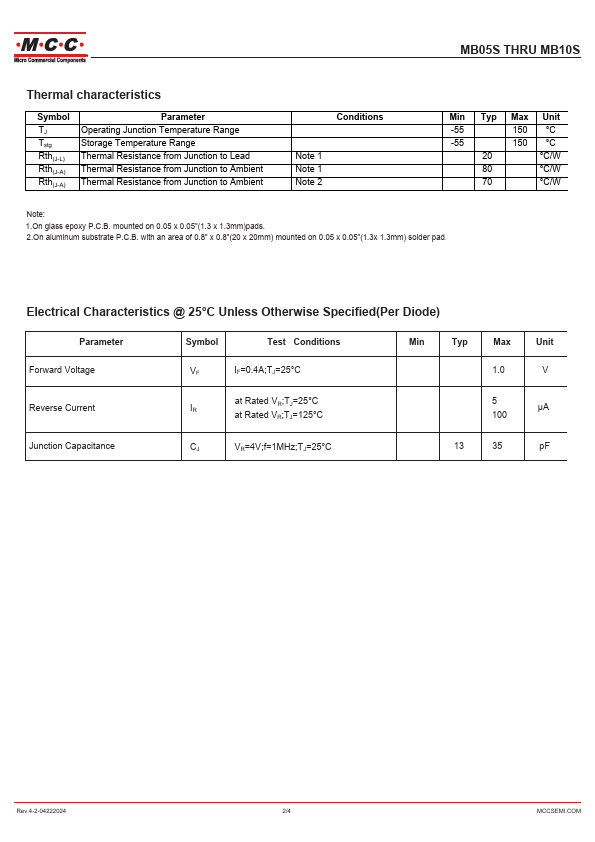

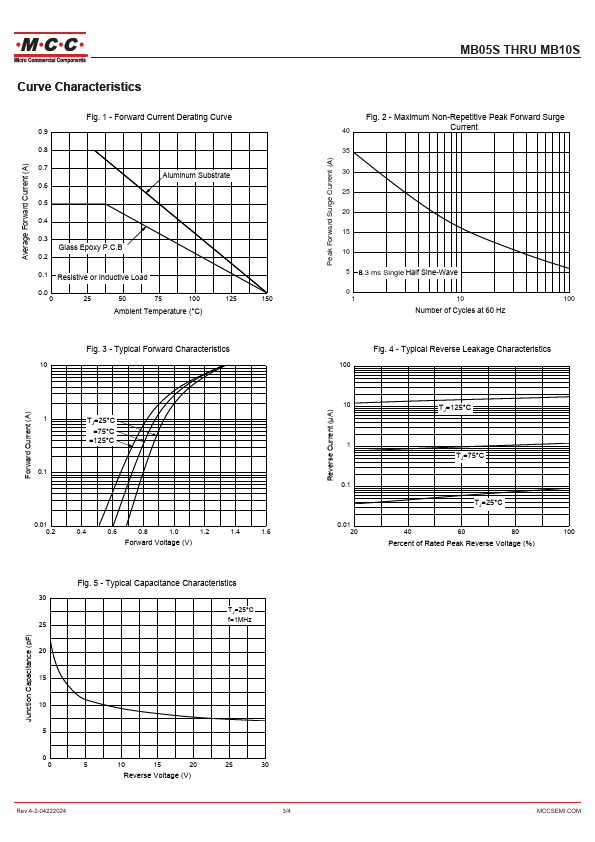

MB05S THRU MB10S &502650 Features • Halogen Free Available Upon Request By Adding Suffix "-HF" • Glass Passivated Chip Junction • Moisture Sensitivity Level 1 • Surface Mount Package • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant (Note 1)("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C (Unless Otherwise Specified) Parameter Peak Repetitive Reverse Voltage Working Peak Reverse Voltage Value Symbol MB MB MB MB MB MB MB Unit 05S 1S 2S 4S 6S 8S 10S VRRM VRWM 50 100 200 400 600 800 1000 V DC Blocking Voltage VR RMS Reverse Voltage VRMS 35 70 140 280 420 560 700 V Average Rectified Forward Current @ See Fig.1 IF(AV) 0.5(Note 2) A 0.8(Note 3) Non-Repetitive Peak Surge Current @ 8.
