IG100-09D - IGBT DC/DC Converters

Download the IG100-09D datasheet PDF (IG120-12 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for igbt dc/dc converters.

Features

  • Asymmetrical Outputs.
  • EN 60950 Approved.
  • 3,000 VAC Isolation.
  • Very Low Isolation Cap.
  • Miniature SIP Case.
  • Meets EN 55032 B.
  • -40°C to +70°C Temp Range.
  • >3.5 MHour MTBF.
  • Seven Standard Models.
  • Operates With xx962 Drivers.
  • Low Cost MicroPower Direct 292 Page Street Suite D Stoughton, MA 02072 USA T: (781) 344-8226 F: (781) 344-8481 E: sales@micropowerdirect. com W: www. micropowerdirect. com Electrical Specifications Specifications typical @ +.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IG120-12-MicroPowerDirect.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number IG100-09D
Manufacturer MicroPower Direct
File Size 1.01 MB
Description IGBT DC/DC Converters
Datasheet download datasheet IG100-09D Datasheet

📁 Similar Datasheet

  • IG1NT052N10R - Radiation Hardened GaN transistor (International Rectifier)
Other Datasheets by MicroPower Direct

Full PDF Text Transcription

Click to expand full text

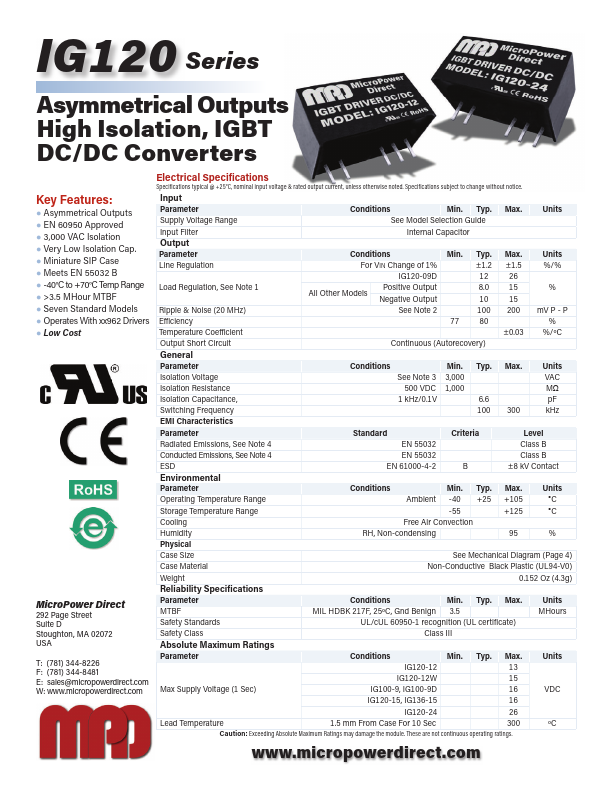

IG120 Series Asymmetrical Outputs High Isolation, IGBT DC/DC Converters Key Features: ● Asymmetrical Outputs ● EN 60950 Approved ● 3,000 VAC Isolation ● Very Low Isolation Cap. ● Miniature SIP Case ● Meets EN 55032 B ● -40°C to +70°C Temp Range ● >3.5 MHour MTBF ● Seven Standard Models ● Operates With xx962 Drivers ● Low Cost MicroPower Direct 292 Page Street Suite D Stoughton, MA 02072 USA T: (781) 344-8226 F: (781) 344-8481 E: sales@micropowerdirect.com W: www.micropowerdirect.com Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max.
