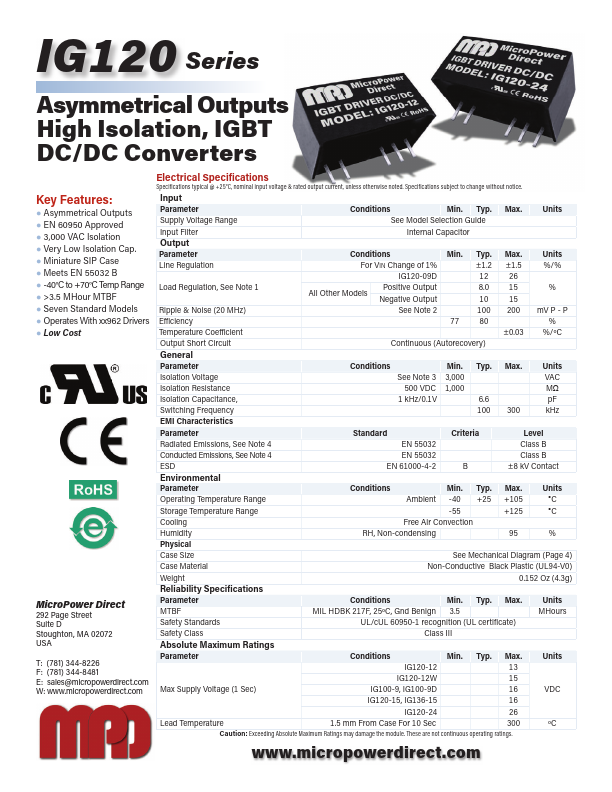

IG120-12
Features
:
- Asymmetrical Outputs
- EN 60950 Approved
- 3,000 VAC Isolation
- Very Low Isolation Cap.
- Miniature SIP Case
- Meets EN 55032 B
- -40°C to +70°C Temp Range
- >3.5 MHour MTBF
- Seven Standard Models
- Operates With xx962 Drivers
- Low Cost
Micro Power Direct
292 Page Street Suite D Stoughton, MA 02072 USA T: (781) 344-8226 F: (781) 344-8481 E: sales@micropowerdirect. W: .micropowerdirect.
Electrical Specifications
Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice.
Input
Parameter
Conditions
Min. Typ. Max. Units
Supply Voltage Range
See Model Selection Guide
Input Filter
Internal Capacitor
Output
Parameter
Conditions
Min. Typ. Max. Units
Line Regulation
For VIN Change of 1%
±1.2 ±1.5
%/%
IG120-09D
Load Regulation, See Note 1
All Other Models Positive Output Negative Output
8.0...
