LDM12-05-350 - DC/DC LED Drivers

Download the LDM12-05-350 datasheet PDF (LDM12-04-300 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for dc/dc led drivers.

Features

  • Constant Current Output.
  • Wide 7V to 16V Input Range.
  • 93% Efficiency.
  • Miniature MiniDIP Case.
  • 300 mA to 1A Output.
  • Meets EN 60950.
  • 3.3 MHrs MTBF.
  • Digital & Analog Dimming! MicroPower Direct 292 Page Street Suite D Stoughton, MA 02072 USA T: (781) 344-8226 F: (781) 344-8481 E: sales@micropowerdirect. com W: www. micropowerdirect. com Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise n.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LDM12-04-300-MicroPowerDirect.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LDM12-05-350
Manufacturer MicroPower Direct
File Size 589.06 KB
Description DC/DC LED Drivers
Datasheet download datasheet LDM12-05-350 Datasheet

📁 Similar Datasheet

Other Datasheets by MicroPower Direct

Full PDF Text Transcription

Click to expand full text

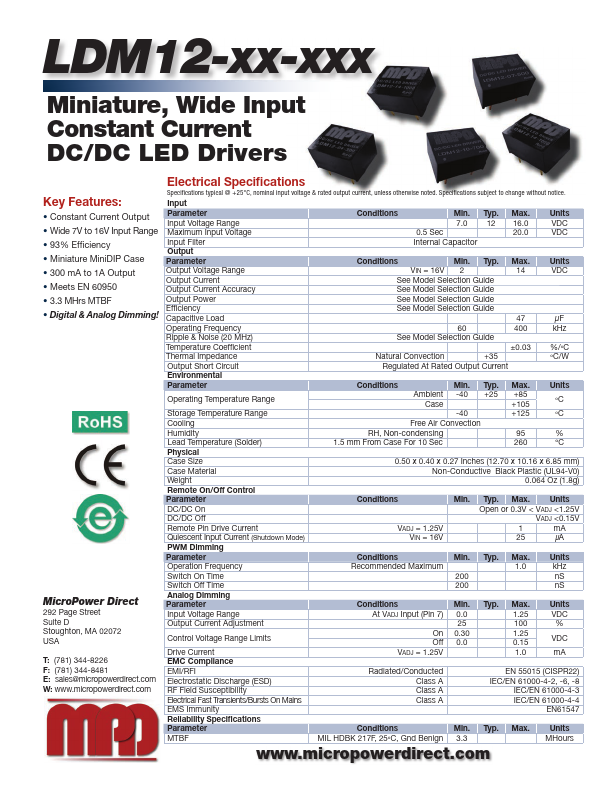

LDM12-xx-xxx Miniature, Wide Input Constant Current DC/DC LED Drivers Electrical Specifications Key Features: • Constant Current Output • Wide 7V to 16V Input Range • 93% Efficiency • Miniature MiniDIP Case • 300 mA to 1A Output • Meets EN 60950 • 3.3 MHrs MTBF • Digital & Analog Dimming! MicroPower Direct 292 Page Street Suite D Stoughton, MA 02072 USA T: (781) 344-8226 F: (781) 344-8481 E: sales@micropowerdirect.com W: www.micropowerdirect.com Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units Input Voltage Range 7.0 12 16.0 VDC Maximum Input Voltage 0.5 Sec 20.
