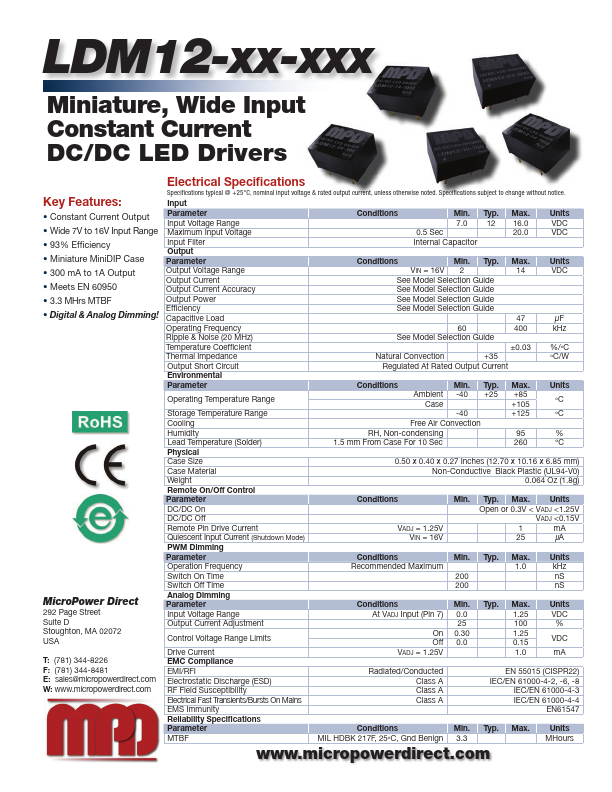

LDM12-08-600 Overview
LDM12-xx-xxx Miniature, Wide Input Constant Current DC/DC LED Drivers Electrical Specifications.
LDM12-08-600 Key Features
- Constant Current Output
- Wide 7V to 16V Input Range
- 93% Efficiency
- Miniature MiniDIP Case
- 300 mA to 1A Output
- Meets EN 60950
- 3.3 MHrs MTBF
- Digital & Analog Dimming!
