LDM12-14-1000 - DC/DC LED Drivers

Download the LDM12-14-1000 datasheet PDF. This datasheet also covers the LDM12-04-300 variant, as both devices belong to the same dc/dc led drivers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Constant Current Output.
  • Wide 7V to 16V Input Range.
  • 93% Efficiency.
  • Miniature MiniDIP Case.
  • 300 mA to 1A Output.
  • Meets EN 60950.
  • 3.3 MHrs MTBF.
  • Digital & Analog Dimming! MicroPower Direct 292 Page Street Suite D Stoughton, MA 02072 USA T: (781) 344-8226 F: (781) 344-8481 E: sales@micropowerdirect. com W: www. micropowerdirect. com Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise n.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LDM12-04-300-MicroPowerDirect.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LDM12-14-1000
Manufacturer MicroPower Direct
File Size 589.06 KB
Description DC/DC LED Drivers
Datasheet download datasheet LDM12-14-1000 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LDM-0808-001W-x3 High Power Infrared Laser Diode Roithner
LDM-0808-002W-x3 High Power Infrared Laser Diode Roithner
LDM-0808-002W-x5 High Power Infrared Laser Diode Roithner
LDM-0808-003W-x3 High Power Infrared Laser Diode Roithner
LDM-0808-005W-x5 High Power Infrared Laser Diode Roithner

Other Datasheets by MicroPower Direct

Part Number Description
LDM12-10-700 DC/DC LED Drivers
LDM12-04-300 DC/DC LED Drivers
LDM12-05-350 DC/DC LED Drivers
LDM12-07-500 DC/DC LED Drivers
LDM12-08-600 DC/DC LED Drivers

Full PDF Text Transcription

Click to expand full text

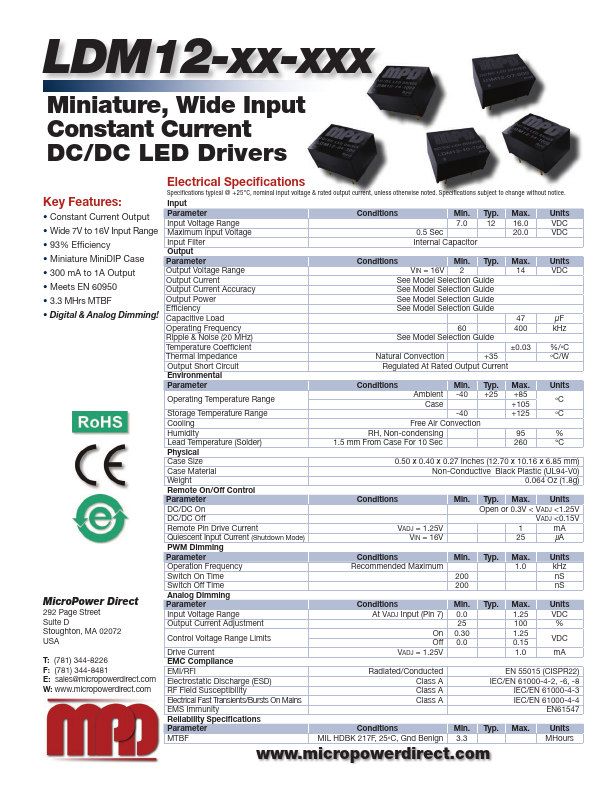

LDM12-xx-xxx Miniature, Wide Input Constant Current DC/DC LED Drivers Electrical Specifications Key Features: • Constant Current Output • Wide 7V to 16V Input Range • 93% Efficiency • Miniature MiniDIP Case • 300 mA to 1A Output • Meets EN 60950 • 3.3 MHrs MTBF • Digital & Analog Dimming! MicroPower Direct 292 Page Street Suite D Stoughton, MA 02072 USA T: (781) 344-8226 F: (781) 344-8481 E: sales@micropowerdirect.com W: www.micropowerdirect.com Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units Input Voltage Range 7.0 12 16.0 VDC Maximum Input Voltage 0.5 Sec 20.
