MD115S - Miniature SIP DC/DC Converters

Download the MD115S datasheet PDF (MD103S included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for miniature sip dc/dc converters.

Features

  • 1W Output Power.
  • 1 kV to 6kV Isolation.
  • 80 Standard Models.
  • Single & Dual Outputs Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units 3.3 VDC Input 2.97 3.3 3.63 5 VDC Input 4.5 5.0 5.5 Input Voltage Range 12 VDC Input 10.8 12.0 13.2 VDC 15 VDC Input 13.5 15.0 16.5.
  • Miniature SIP Case.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MD103S-MicroPowerDirect.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MD115S
Manufacturer MicroPower Direct
File Size 2.76 MB
Description Miniature SIP DC/DC Converters
Datasheet download datasheet MD115S Datasheet

📁 Similar Datasheet

  • MD110 - Diode Modules (TECHSEM)
  • MD110A - Ordinary rectifier module (KUNERJING)
  • MD1120 - COMPLEMENTARY DUAL GENERAL PURPOSE TRANSISTOR (MOTOROLA)
  • MD1120F - COMPLEMENTARY DUAL GENERAL PURPOSE TRANSISTOR (MOTOROLA)
  • MD1121 - COMPLEMENTARY DUAL GENERAL PURPOSE TRANSISTOR (MOTOROLA)
  • MD1121F - COMPLEMENTARY DUAL GENERAL PURPOSE TRANSISTOR (MOTOROLA)
  • MD1122 - COMPLEMENTARY DUAL GENERAL PURPOSE TRANSISTOR (MOTOROLA)
  • MD1122F - COMPLEMENTARY DUAL GENERAL PURPOSE TRANSISTOR (MOTOROLA)
  • MD1123 - COMPLEMENTARY DUAL GENERAL PURPOSE TRANSISTOR (MOTOROLA)
  • MD1130 - COMPLEMENTARY DUAL GENERAL PURPOSE TRANSISTOR (MOTOROLA)
Other Datasheets by MicroPower Direct
  • MD115D - Miniature SIP DC/DC Converters
  • MD112D - Miniature SIP DC/DC Converters
  • MD112S - Miniature SIP DC/DC Converters
  • MD103D - Miniature SIP DC/DC Converters
  • MD103S - Miniature SIP DC/DC Converters
  • MD105D - Miniature SIP DC/DC Converters
  • MD105S - Miniature SIP DC/DC Converters
  • MD124D - Miniature SIP DC/DC Converters

Full PDF Text Transcription

Click to expand full text

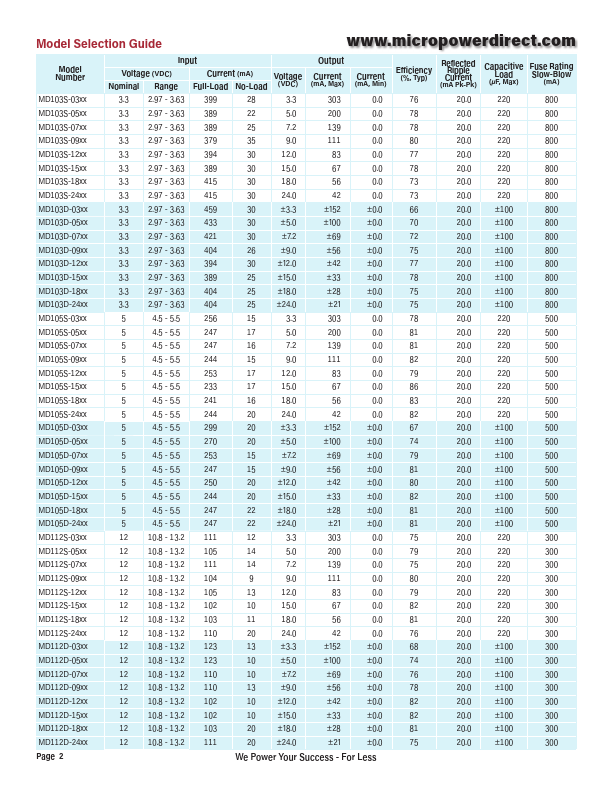

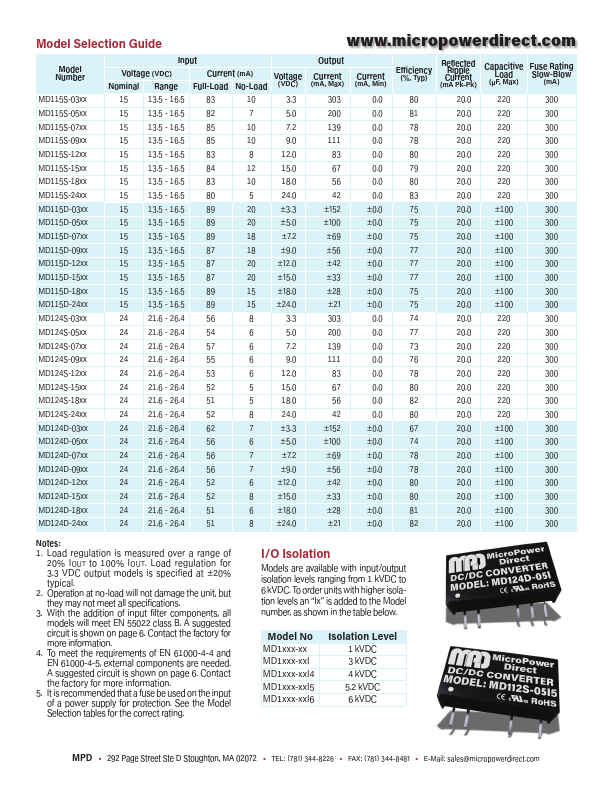

MD100 Series 1 kV To 6 kV Isolation, 1W, Miniature SIP DC/DC Converters Key Features: ● 1W Output Power ● 1 kV to 6kV Isolation ● 80 Standard Models ● Single & Dual Outputs Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units 3.3 VDC Input 2.97 3.3 3.63 5 VDC Input 4.5 5.0 5.5 Input Voltage Range 12 VDC Input 10.8 12.0 13.2 VDC 15 VDC Input 13.5 15.0 16.5 ● Miniature SIP Case ● EN 62368 Approved ● Efficiency to 86% Input Filter Output Parameter 24 VDC Input 21.6 24.0 26.4 Capacitor Filter Conditions Min. Typ. Max.
