MD124D Datasheet Miniature SIP DC/DC Converters

Manufacturer: MicroPower Direct

Download the MD124D datasheet PDF. This datasheet also includes the MD103S variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MD103S-MicroPowerDirect.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MD124D
Manufacturer MicroPower Direct
File Size 2.76 MB
Description Miniature SIP DC/DC Converters
Download MD124D Download (PDF)

Overview

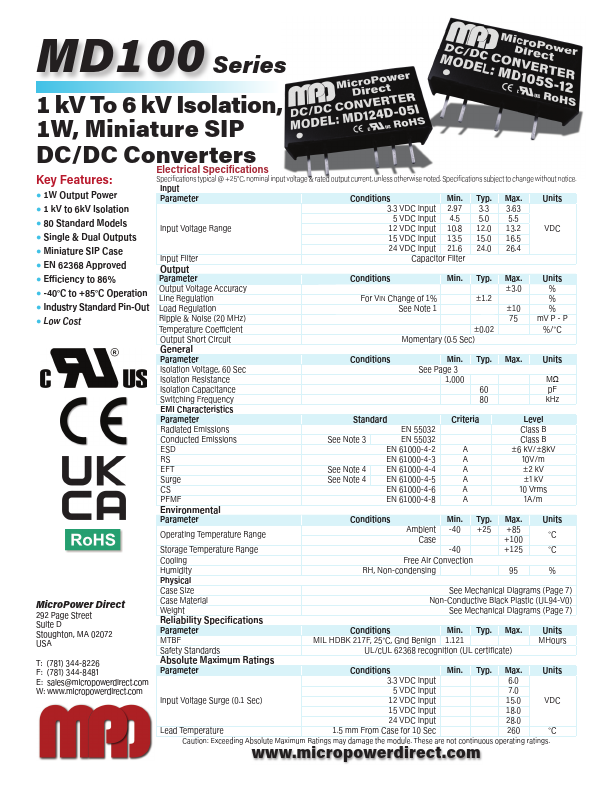

MD100 Series 1 kV To 6 kV Isolation, 1W, Miniature SIP DC/DC Converters.

Key Features

  • 1W Output Power.
  • 1 kV to 6kV Isolation.
  • 80 Standard Models.
  • Single & Dual Outputs Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units 3.3 VDC Input 2.97 3.3 3.63 5 VDC Input 4.5 5.0 5.5 Input Voltage Range 12 VDC Input 10.8 12.0 13.2 VDC 15 VDC Input 13.5 15.0 16.5.
  • Miniature SIP Case.
